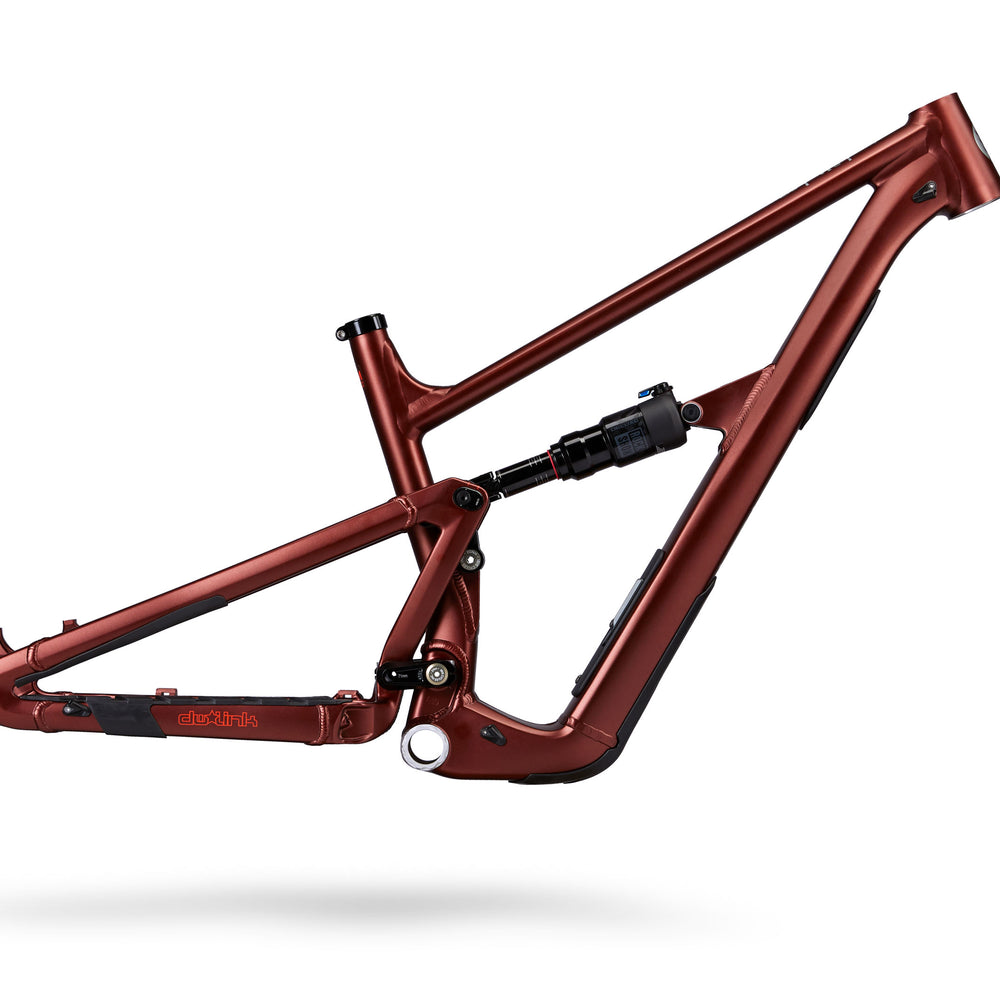

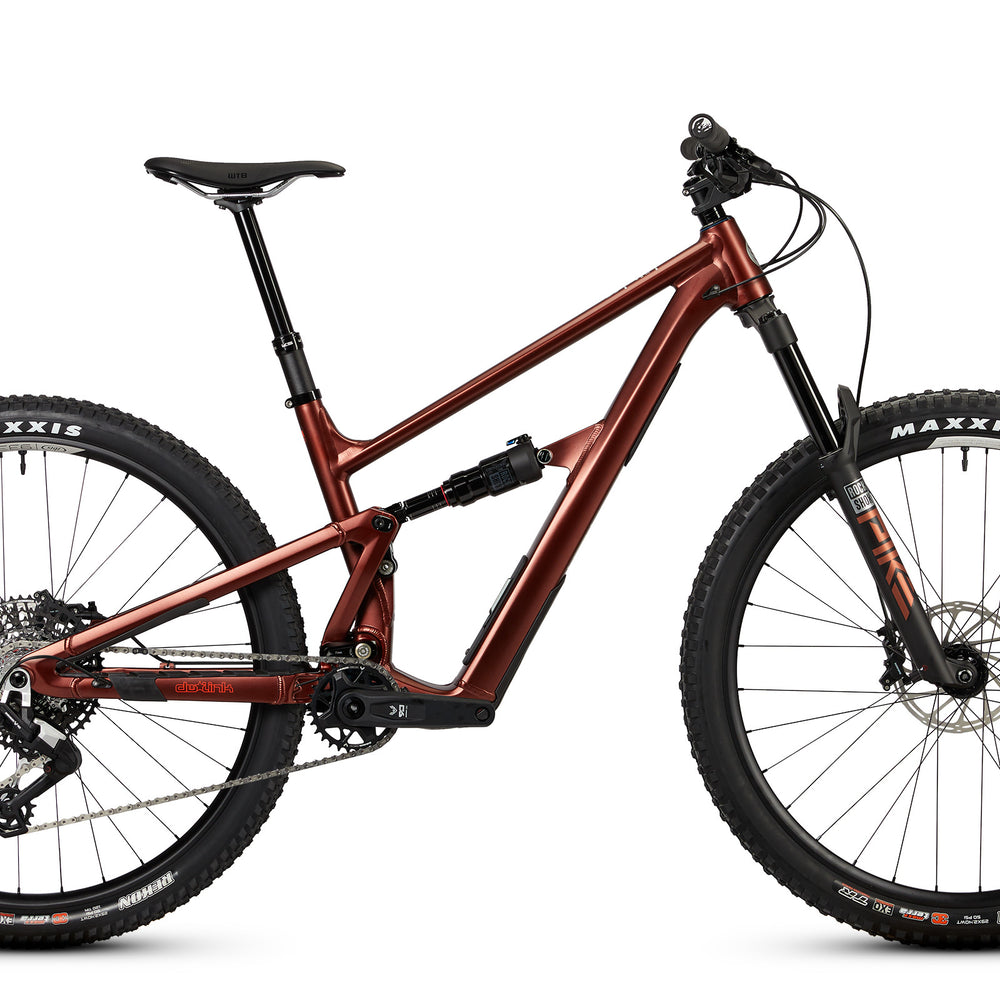

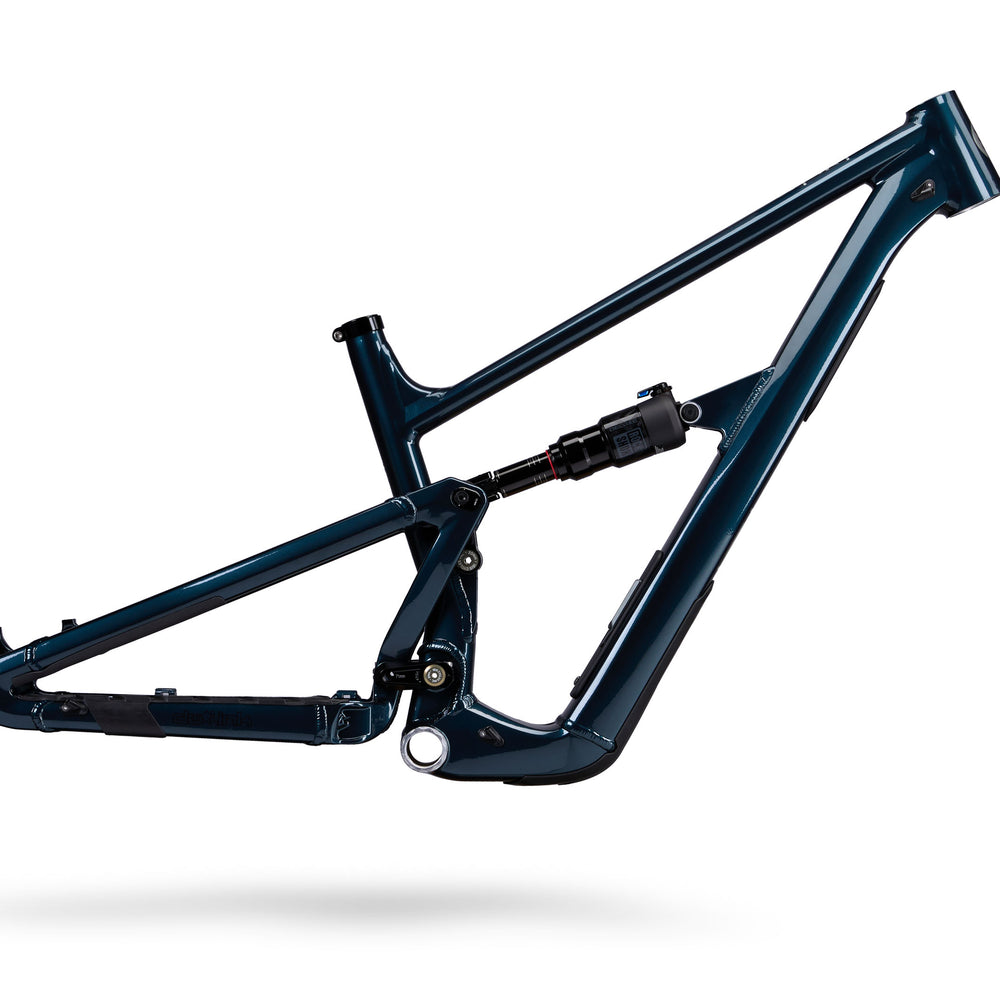

MY26 Ibis Cycles Ripley AF (Frame Only)

$4,290.00 AUD
Color
BURNT ORANGE
Frame Size
Find A Dealer Make an Inquiry

Ripley is good AF at pretty much everything.

Perfect for both seasoned shredders and stoked newcomers, the newest AF version packs the same fast, playful feel the Ripley is known for — into a tough aluminum package that’s ready for anything.

With 130mm of rear travel and 140mm up front, it climbs efficiently and descends way above its travel class. The confident progressive geometry gives it quick and responsive handling on tight trails while keeping things stable when the speed picks up. Designed for riders who value agility, capability, and all-around fun, the Ripley AF shares all the features of its carbon counterpart: dw-link suspension, 29” wheels front and rear, with flip chips to run a 27.5” rear wheel (if you’re into mullets), and in-frame storage with two included Ibis bags — for all your snacks and tools.

130MM

REAR TRAVEL.

140MM

FRONT TRAVEL.

29"

WHEELS. MX OPTIONAL VIA F. CHIP

Lifetime Warranty

If it’s our fault, we’ll fix it. Sim­ple as that.

REGISTER
Rowney Sports

IT'S FAST. IT'S FUN. IT'S UNAPOLOGETICALLY METAL...AF.

A trail-friendly 65.5-degree head angle and short (44mm) offset 130mm fork combined with 29” wheels makes for a super planted but still playful front end feel. A 76-degree seat tube angle puts your power directly to the pedals, while the short chainstays and pedal-friendly dw-link kinematics deliver that power without squandering a single watt.

Rowney Sports

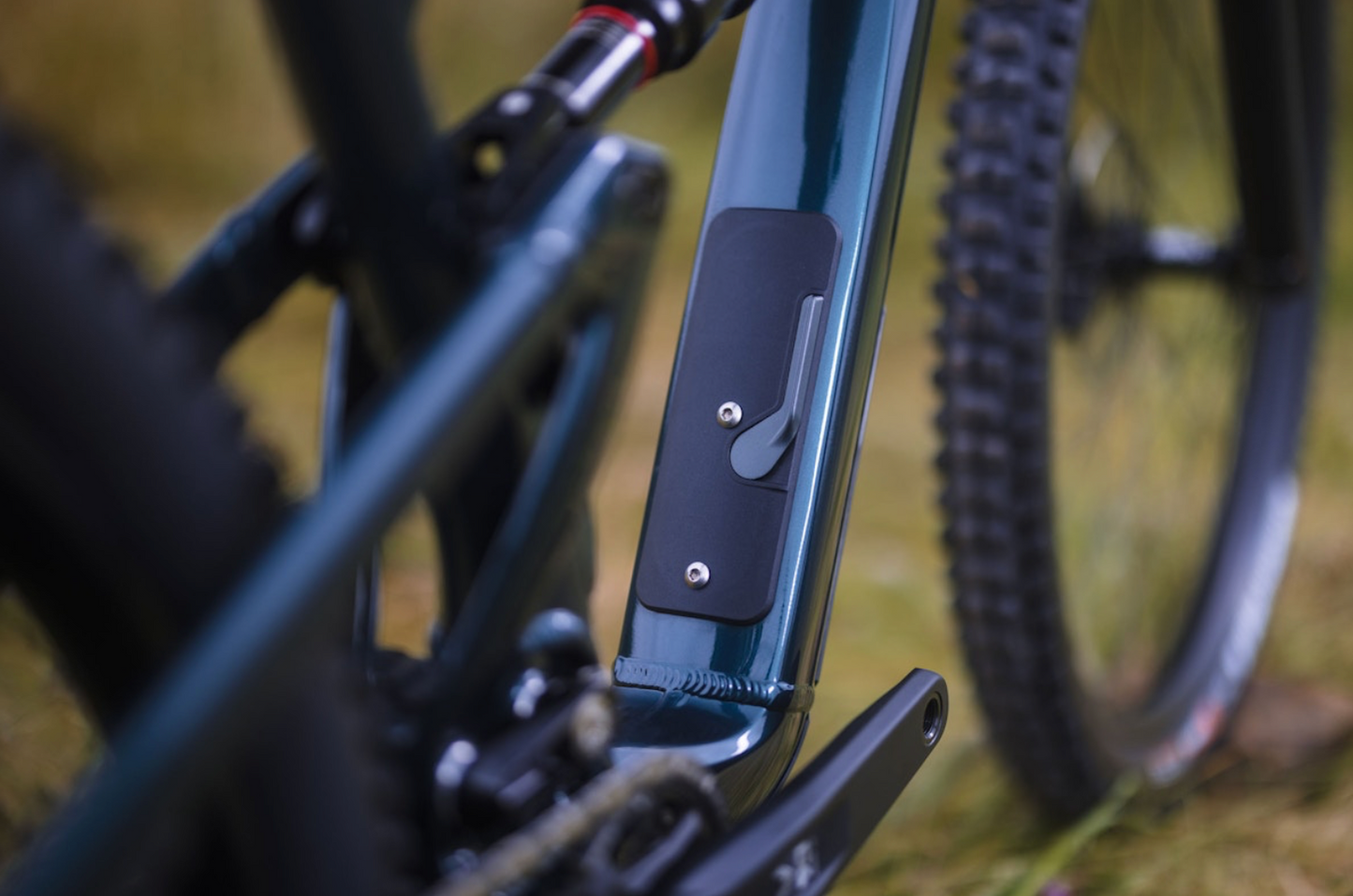

INTERNAL FRAME STORAGE

Get that gear off your back and into your bike with our frame storage system. The latch operates effortlessly, even in cold, muddy conditions while wearing gloves. The door is water-resistant, rattle-free, and robust.

Ibis has crafted a set of two internal bags for your snacks, tools, or whatever. The bags are crafted from durable, and water-resistant materials, with a bright interior to help see your stored items.

Rowney Sports

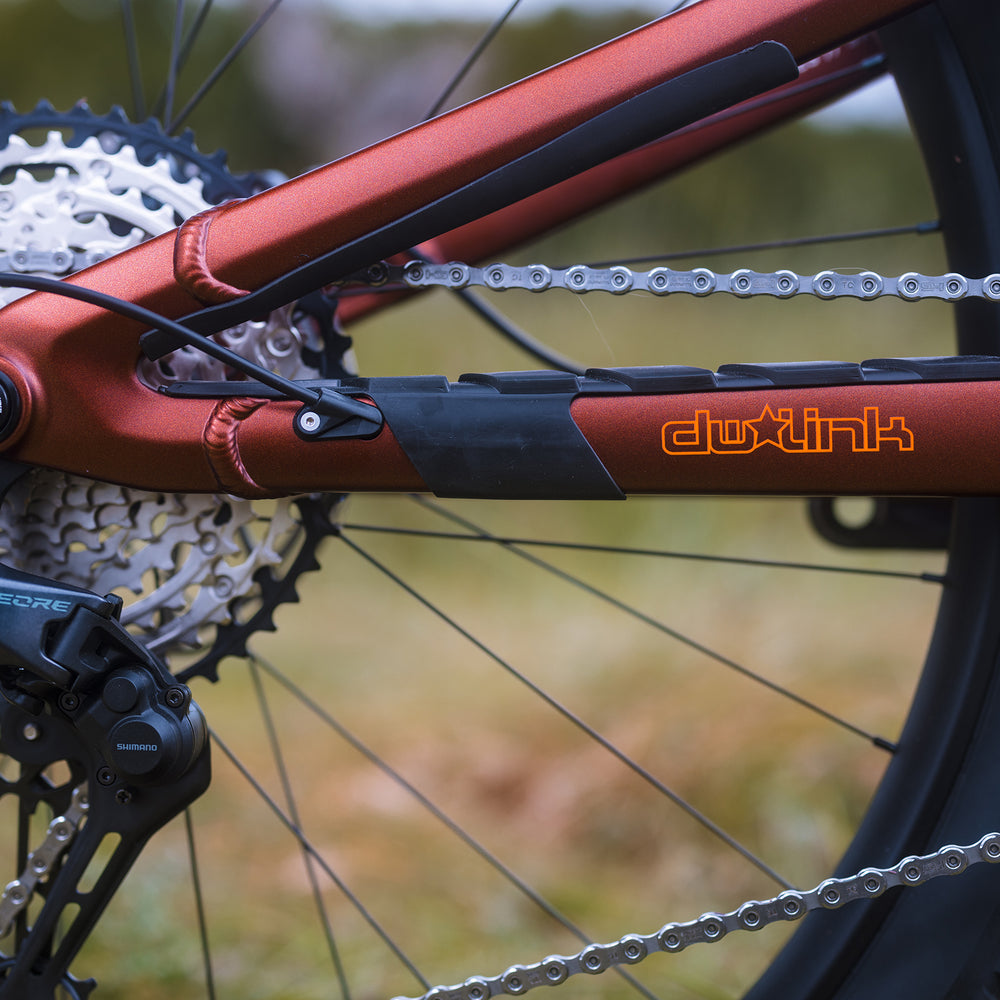

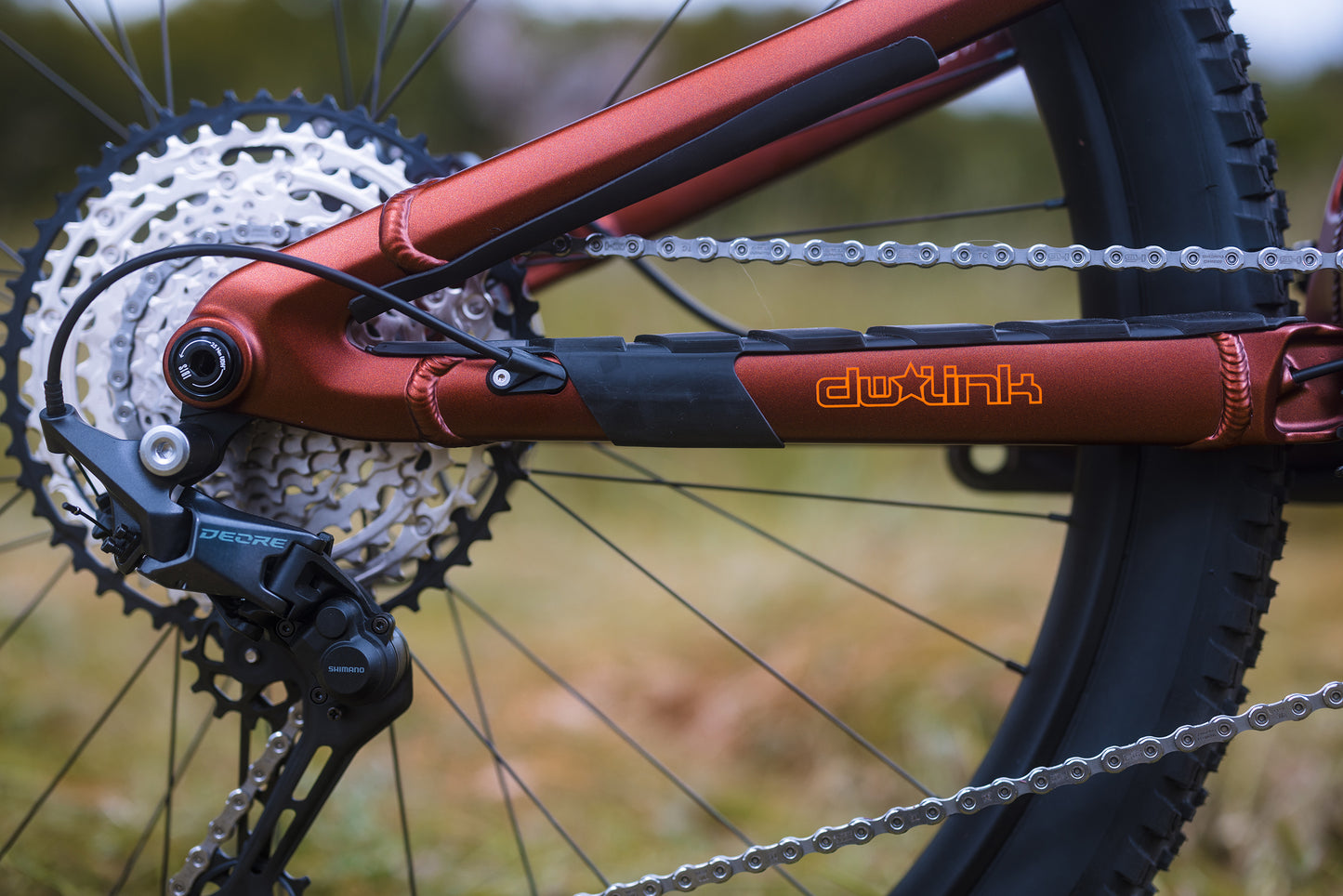

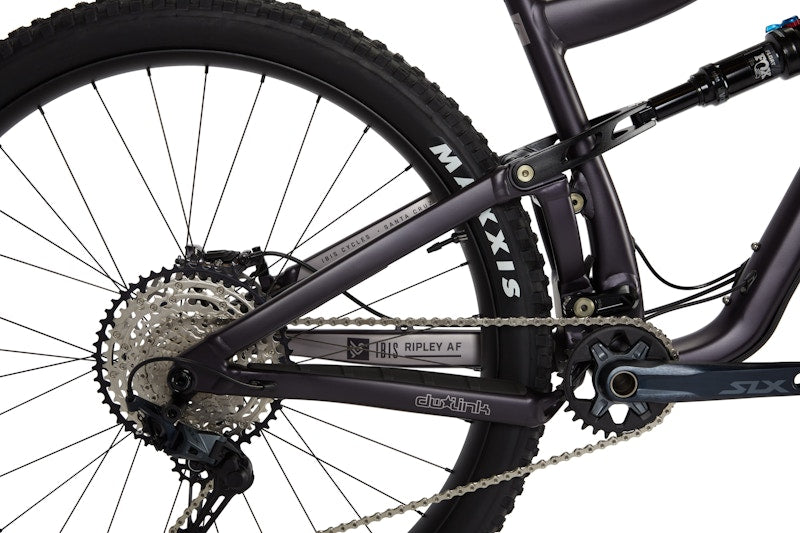

DW Link Suspension

Our 15-year collaboration with Dave Weagle has yielded yet another bike with unparalleled climbing efficiency and control. Incredible snap and responsiveness are its trademarks, and a whole mess of plush, chunder-eating, downhill-crushing goodness gets thrown in for good measure. Wrap that together and you get the best suspension you’ll find anywhere. It’s that good.

Other Key features

FLIP IT

We’ve added more adjustability with a new flip chip - now you can run 29” or 27.5”/29” mixed (MX) wheels on all sizes without compromising the geometry. The Ripley ships with 29” wheels.

5 SIZES

We've added a third size in the middle of the bell curve to provide a fit that’s just right. With 80% of our riders falling between 5’5” and 6’0”, we introduced a new "Extra-Medium" size. The extra-medium now sits in the middle of our size range. If you are solidly a Large or XL previously, then your size remains the same.

SIZE SPECIFIC

Every rider deserves the same great ride feel, no matter their height or proportions. We use size specific seat tube angles and suspension kinematics to bring incredible balance and speed to all size riders. Even chainstay length and bottom bracket height are tailored to each frame size.

make an inquiry
Rowney Sports
Rowney Sports

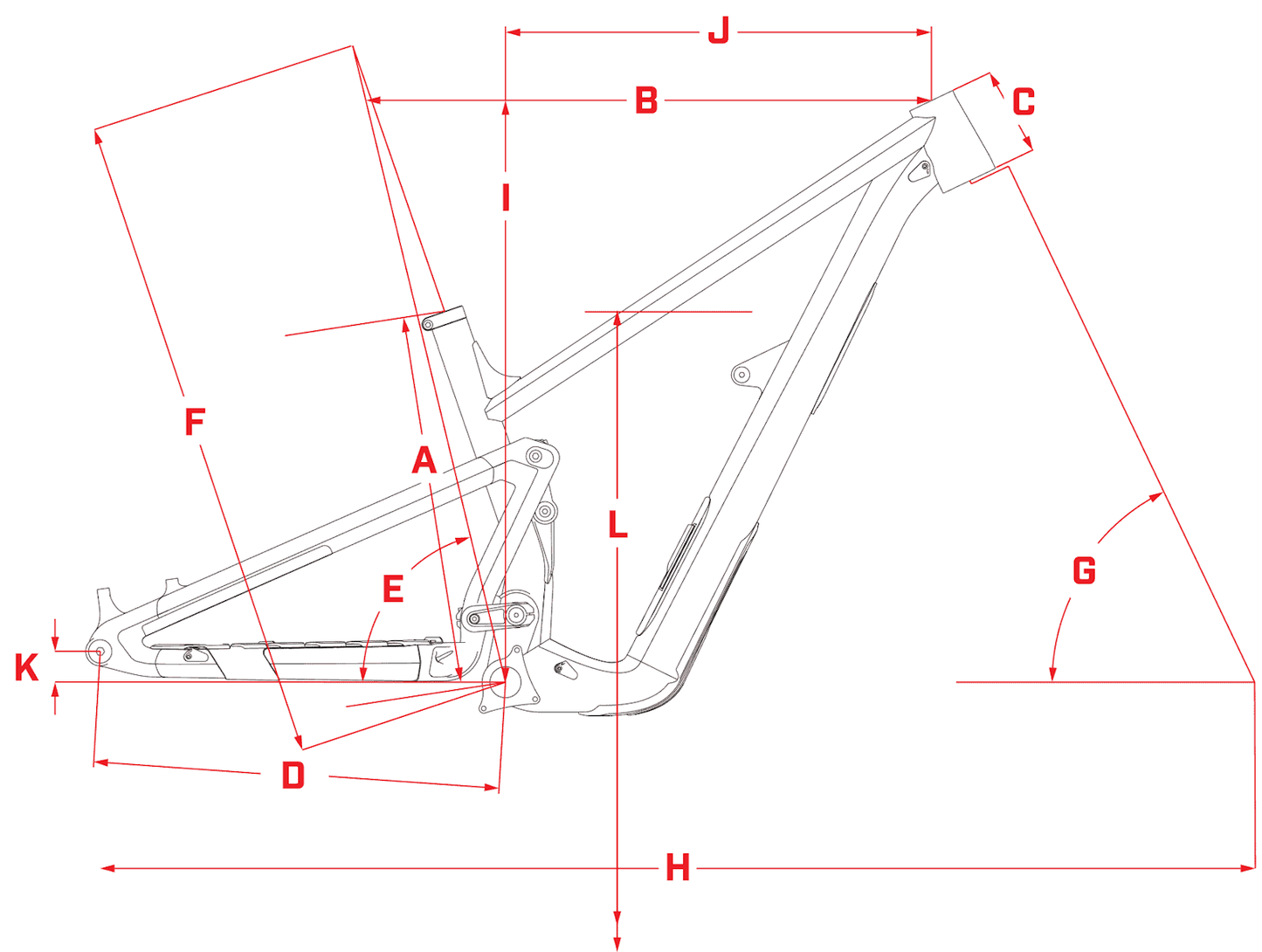

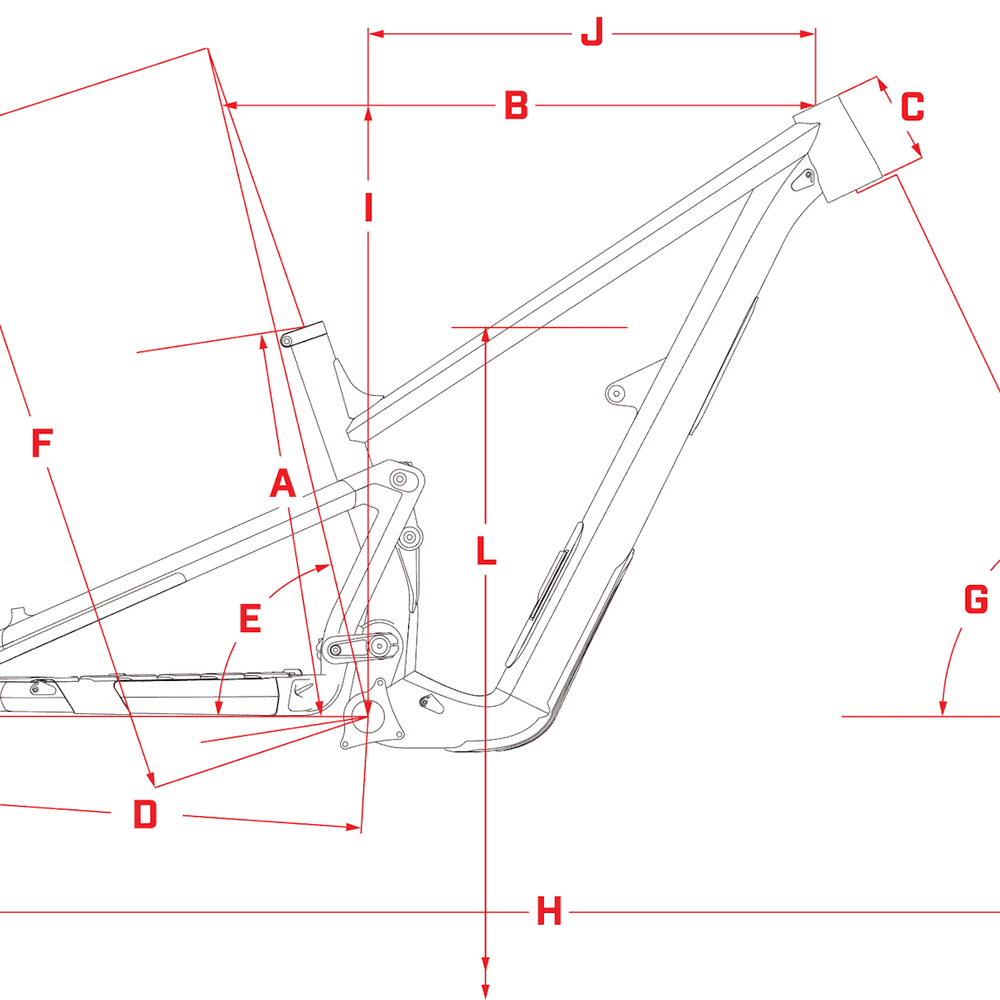

140mm Fork (555mm axle to crown)

Nominal Size SM MD XM LG XL
Seat Tube Length A 395 400 415 457 477
Top Tube Length B 577 604 629 654 684
Head Tube Length (4mm stack of lower cup not included) C 85 95 110 125 140
Chainstay Length 29" D 436 436 437 440 442
Seat Tube Angle E 77.4° 76.9° 76.9° 77.4° 77.9°
Saddle Height for Seat Tube Angle F 650 700 745 790 830
Head Tube Angle G 64.9° 64.9° 64.9° 64.9° 64.9°
Wheelbase H 1187 1211 1241 1279 1321
Stack I 613 619 629 640 650
Reach J 440 460 483 511 545
BB Height (with Maxxis 29 x 2.4 / 27.5 x 2.5 WT Rear Tyre) 326 329 332 335 338
BB Drop K 48 45 42 39 36
Standover L 680 721 744 759 772
Recommended Seatpost Drop 140 170 185 213 213
Crank Length 165 165 170 170 170
Tyre Size 2.35-2.5" 2.35-2.5" 2.35-2.5" 2.35-2.5" 2.35-2.5"
Water Bottle Size 1 x 769ml / 26oz 1 x 769ml / 26oz 1 x 769ml / 26oz 1 x 769ml / 26oz 1 x 769ml / 26oz

Kit Detail

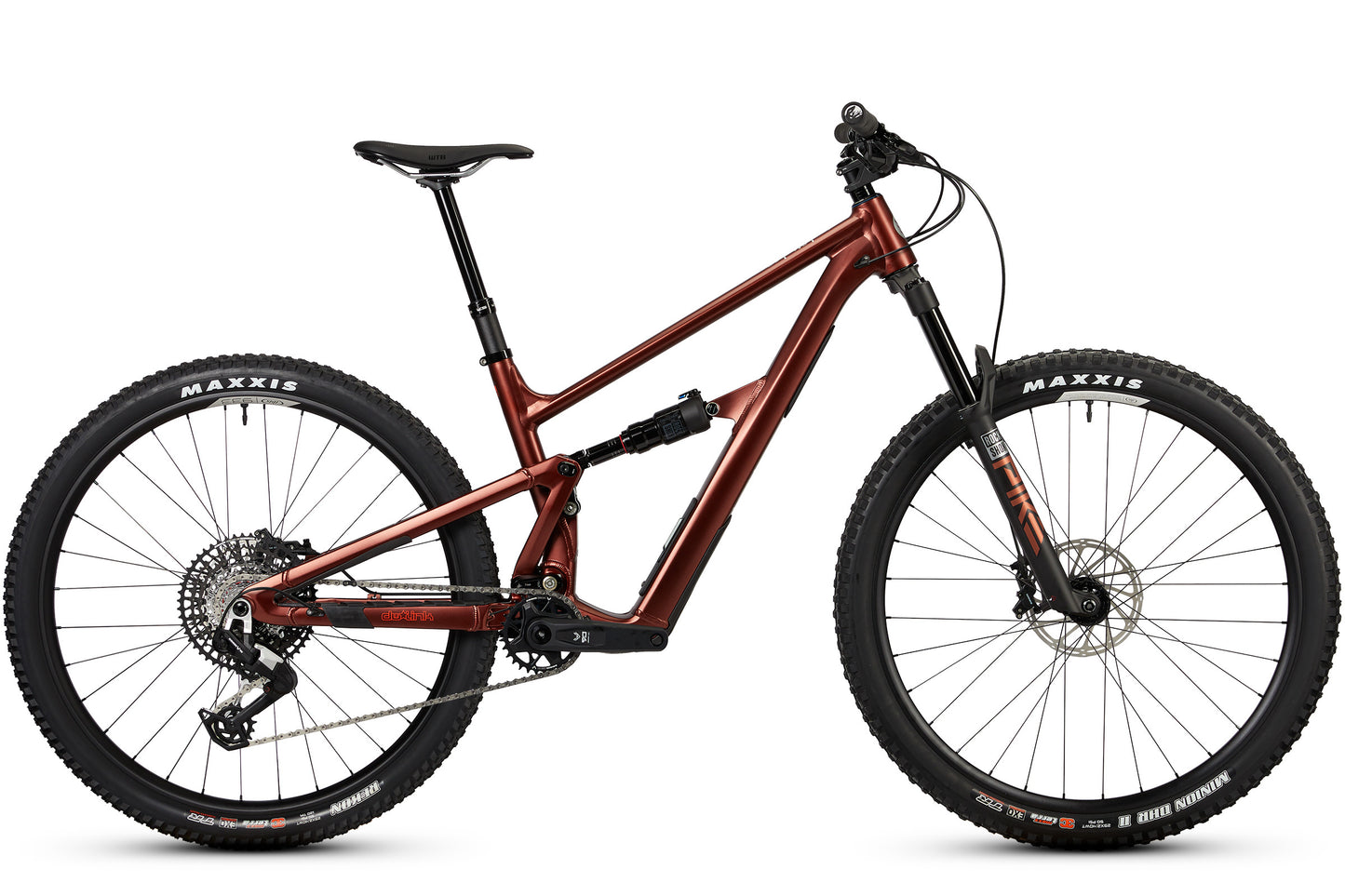

RIPLEY AF SHIMANO DEORE $5,990.00 AUD
RIPLEY AF SRAM E90 $6,590.00 AUD

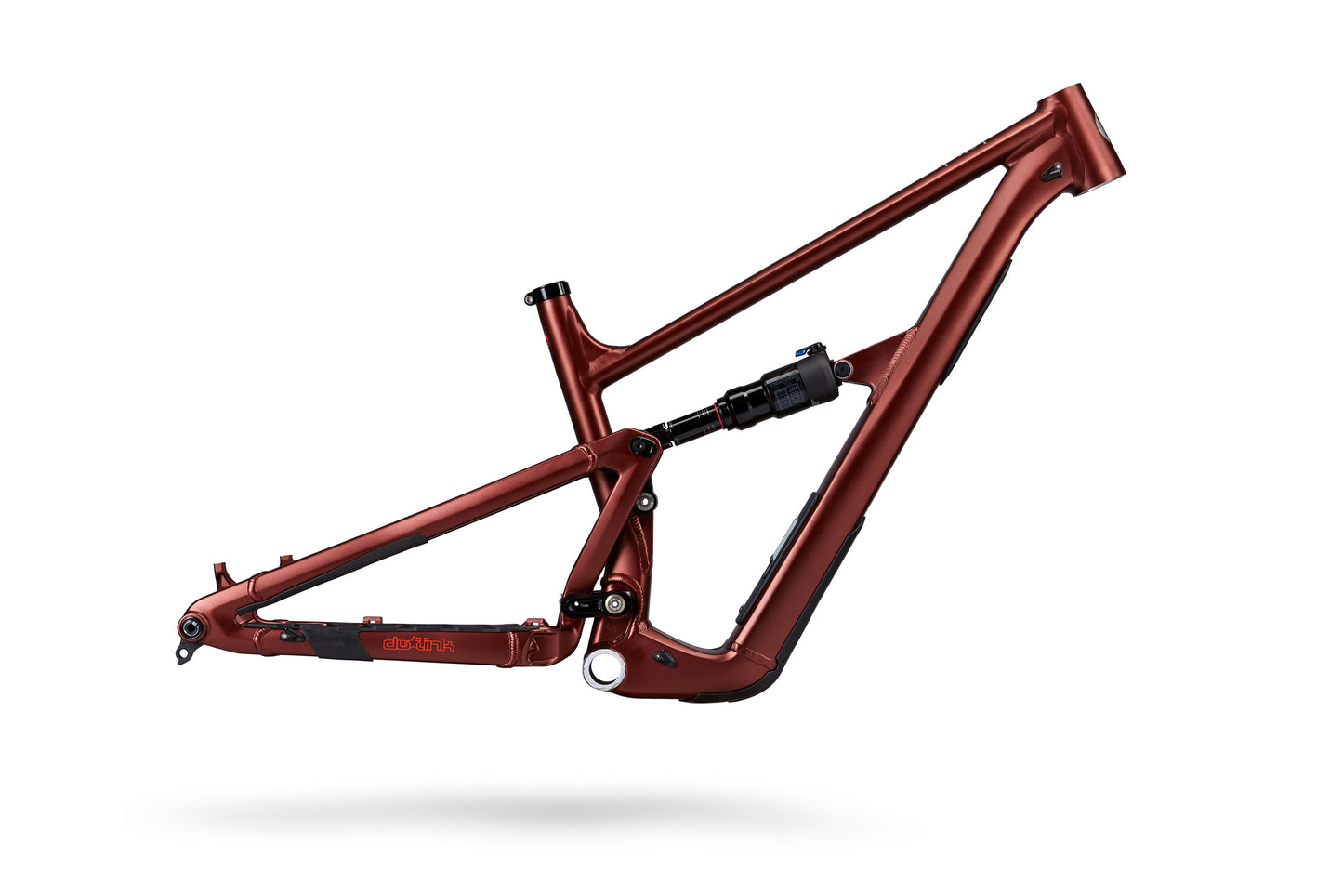

RIPLEY AF (Frame Only) $4,290.00 AUD
Fork RockShox Pike, 29-140mm, 15QR x 110 RockShox Pike, 29-140mm, 15QR x 110
Shock RockShox Deluxe Select+ 210mm x 52.5mm RockShox Deluxe Select+ 210mm x 52.5mm RockShox Deluxe Select+ 210mm x 52.5mm
Wheels Ibis Hubs, Ibis 933 Aluminum Rims Ibis Hubs, Ibis 933 Aluminum Rims
Front Tyre Maxxis Minion DHR II, 29 x 2.4, Exo TR, or Maxxis Forekaster, 29 x 2.4, Exo TR Maxxis Minion DHR II, 29" x 2.4, Exo TR, or Maxxis Forekaster, 29 x 2.4, Exo TR
Rear Tyre Maxxis Rekon, 29 x 2.4, Exo TR Maxxis Rekon, 29 x 2.4, Exo TR
Brakes SRAM G2 R 4P SRAM G2 R 4P
Rotors (F/R) SRAM Centreline 6-Bolt 180F/180R SRAM Centreline 6-Bolt 180F/180R
Crankset Shimano Deore M6120 24mm spindle SRAM Eagle 90 Transmission DUB, 30T Alloy Ring, SM-MD: 165mm, XM-XL: 170mm
Bottom Bracket Shimano MT501 SRAM DUB BSA
Rear Derailleur Shimano Deore M6100 SGS SRAM Eagle 90 Transmission
Shifter Shimano Deore M6100 Bland Clamp SRAM Eagle 90 Transmission Shifter
Cassette Shimano Deore, M6100, 10-51T SRAM XS 1275 Eagle Transmission 10-52
Chain KMC X12 Silver Chain SRAM GX Eagle Transmission
Headset Cane Creek 50 ZS44/ZS56 Cane Creek 50 ZS44/ZS56
Grips Lizard Skins Single Clamp Lizard Skins Single Clamp
Handlebar Ibis Aluminium, 780mm Ibis Aluminium, 780mm
Stem Ibis 31.8mm, SM–MD: 40mm, XM–XL: 50mm Ibis 31.8mm, SM–MD: 40mm, XM–XL: 50mm
Seatpost KS Vantage Dropper, SM: 110-140mm, MD-XM: 140-170mm, LG-XL: 180-210mm KS Vantage Dropper, SM: 110-140mm, MD-XM: 140-170mm, LG-XL: 180-210mm
Saddle WTB Silverado Fusion CrMo 142 WTB Silverado Fusion CrMo 142
