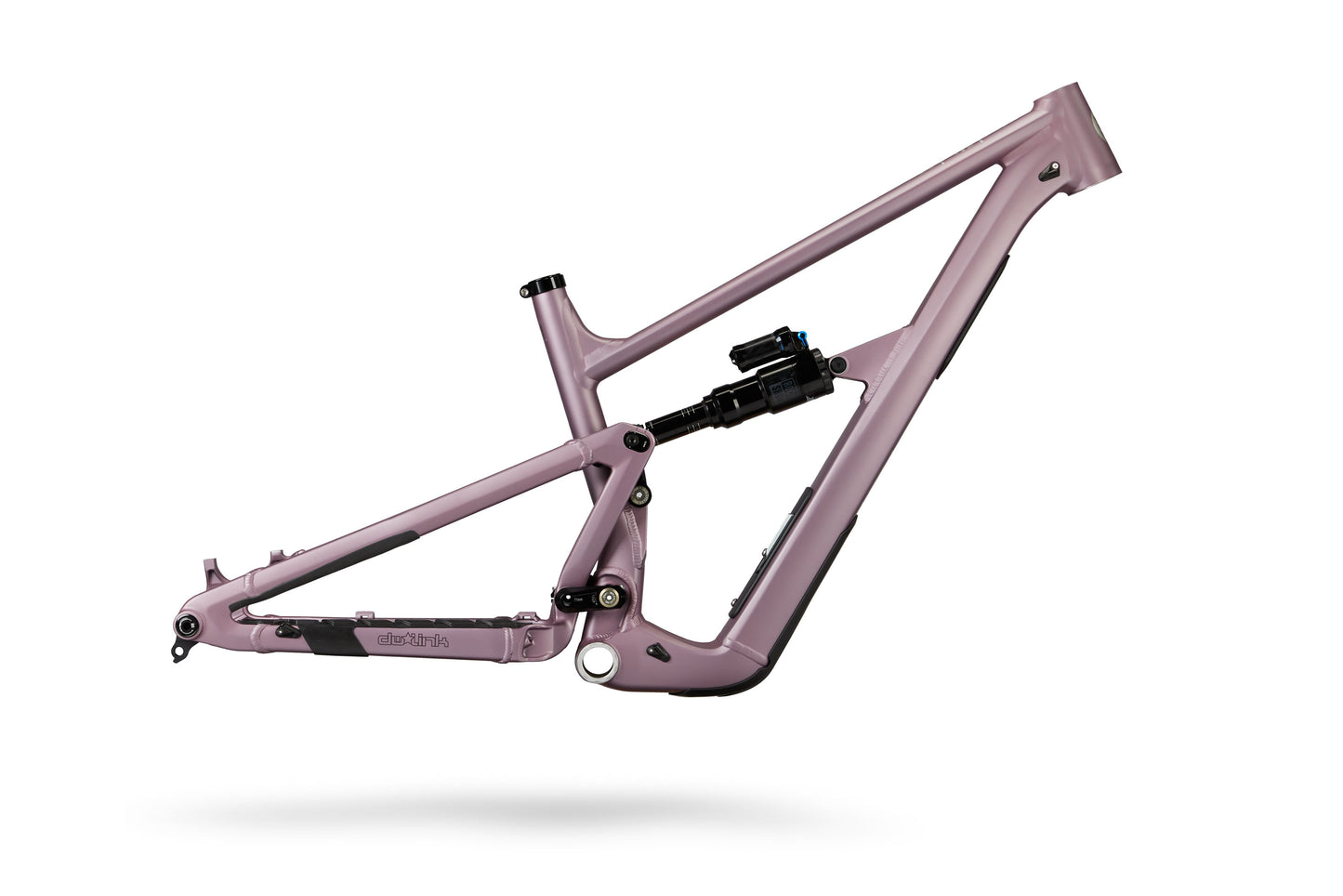

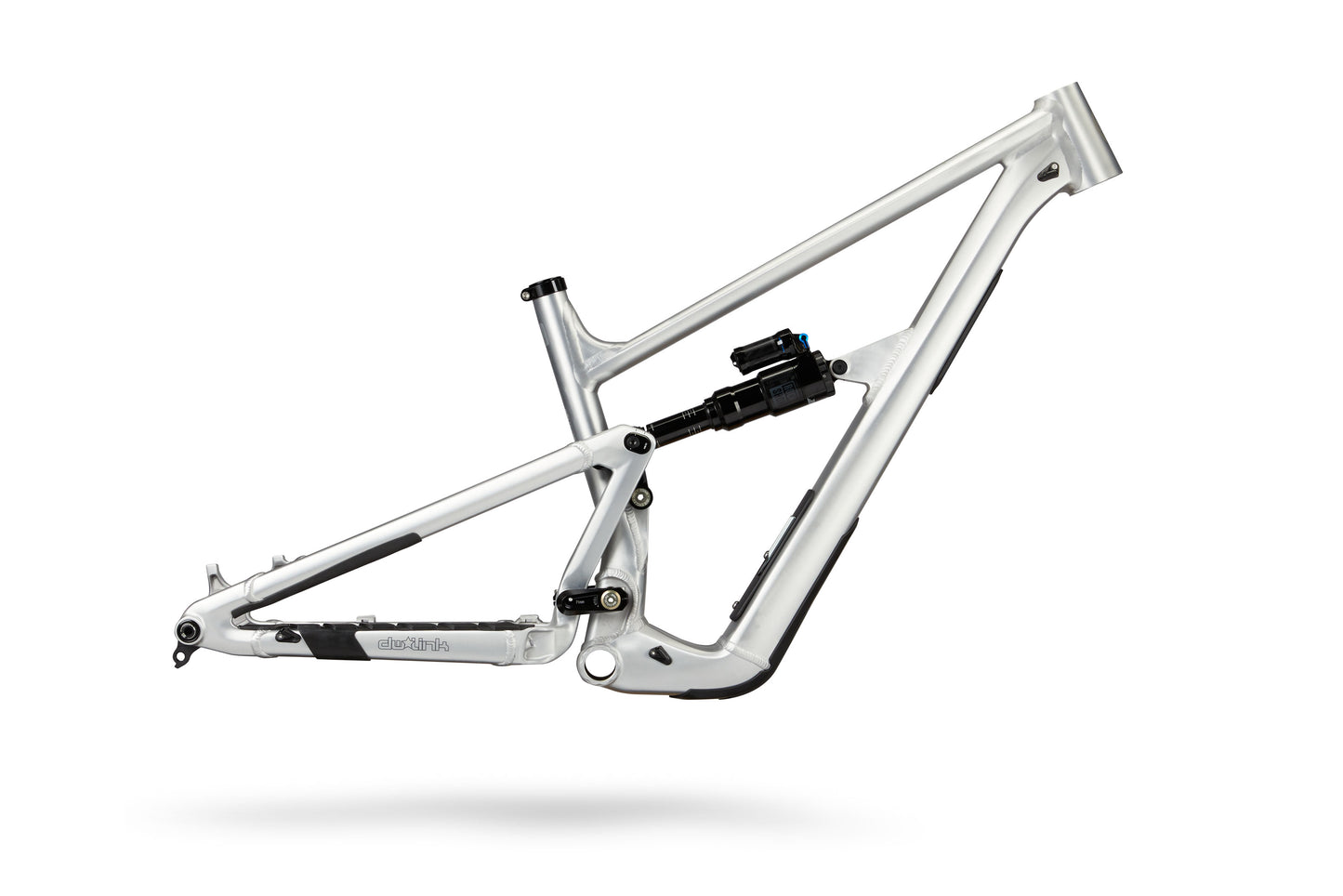

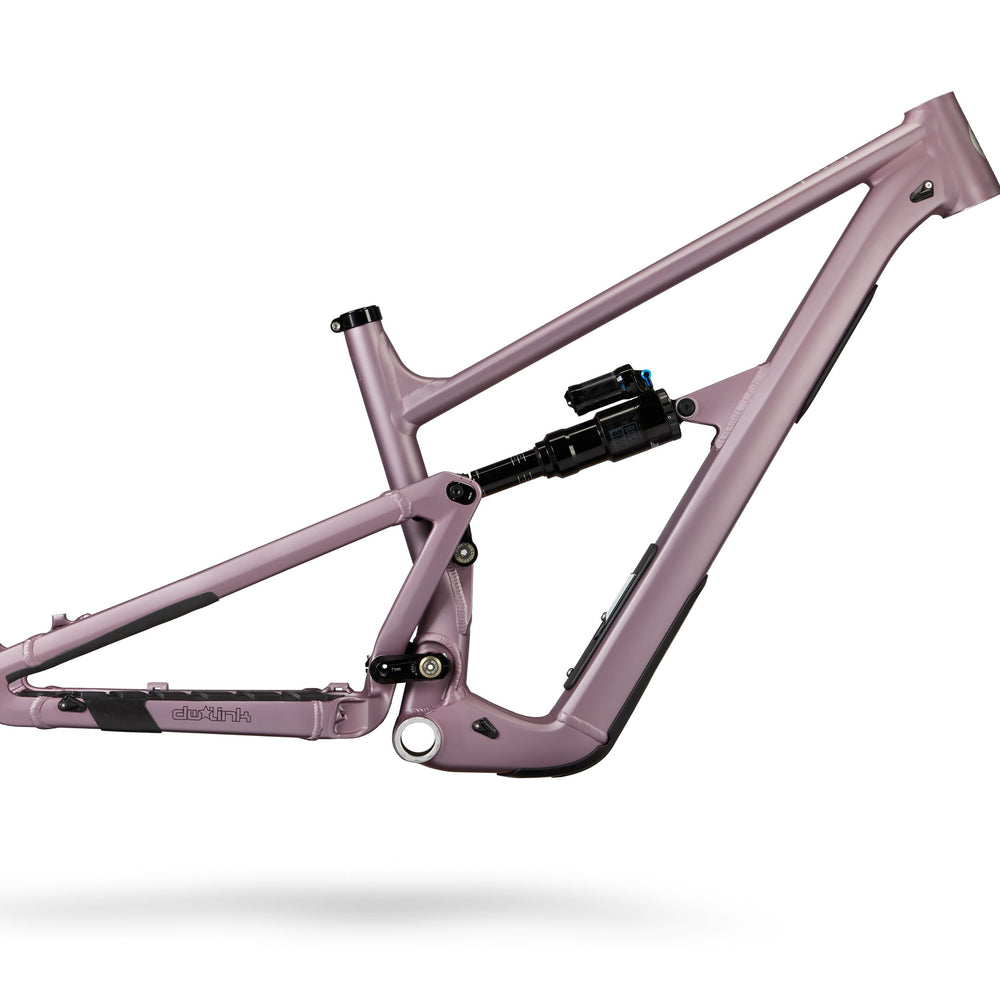

MY26 Ibis Cycles Ripmo AF (Frame Only)

$4,390.00 AUD
Color

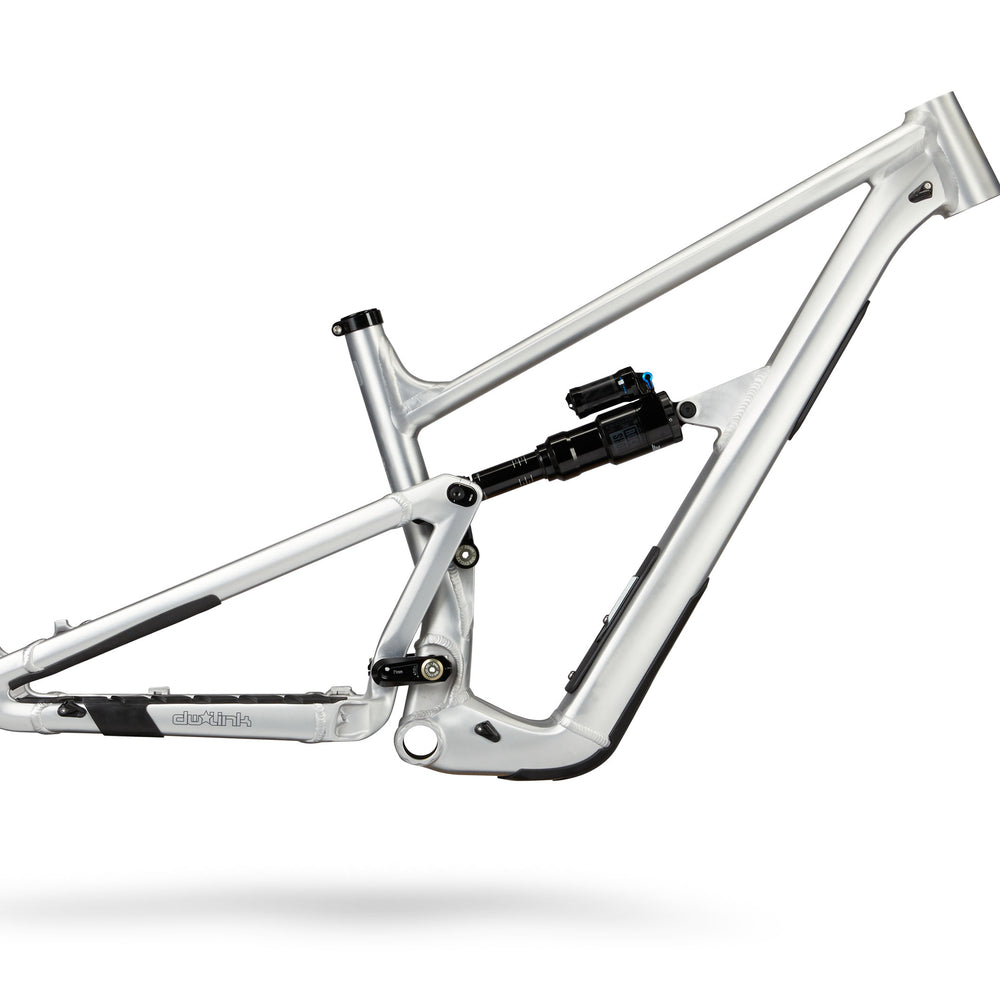

Metal AF
Frame Size
Find A Dealer Make an Inquiry

it's fast. it's capable. it's metal...af.

The Ripmo AF legend continues, bringing big-mountain capability to a rugged, aluminum package — blending long-travel confidence with trail-friendly efficiency.

With 160mm front and 150mm rear travel, dw-link suspension, and Flip chips for using a 27.5” or 29” rear wheel, it’s built for steep descents, chunky terrain, and climbs better than it should. Progressive geometry and a durable frame make it ideal for riders who push hard and want a bike that can keep up, lap after lap. Whether you're racing enduro, exploring alpine singletrack, or sending the local lines, the Ripmo AF delivers the same legendary performance as its carbon sibling. The Ripmo AF has all of the same features as the carbon bike; in-frame storage with two bags, coil compatibility, progressive geometry, all at a more approachable price.

5 sizes

We've added a third size in the middle of the bell curve to provide a fit that’s just right. With 80% of our riders falling between 5’5” and 6’0”, we introduced a new "Extra-Medium" size. The extra-medium now sits in the middle of our size range. If you are solidly a Large or XL previously, then your size remains the same.

size specific

Every rider deserves the same great ride feel, no matter their height or proportions. We use size specific seat tube angles and suspension kinematics to bring incredible balance and speed to all size riders. Even chainstay length and bottom bracket height are tailored to each frame size.

flip it

We’ve added more adjustability with a new flip chip - now you can run 29” or 27.5”/29” mixed (MX) wheels on all sizes without compromising the geometry. The Extra Medium and larger sizes ship with 29” wheels, while the Small and Medium sizes come with MX wheels.

Lifetime Warranty

If it’s our fault, we’ll fix it. Sim­ple as that.

register

150mm

5.9" REAR TRAVEL.

160MM

6.3" FRONT TRAVEL.

29" / MX

SIZE SPECIFIC WHEELSIZE

Rowney Sports

It’s Metal

Over our long tenure from mountain biking’s awkward adolescence to its current anything-shreddy era, we’ve experimented with steel, aluminum and titanium—remember the Bow-Ti, the first superbike? We remember the metal times too, and it feels good to offer a premium ride experience to our broadening family of riders, courtesy of durable, affordable aluminum alloy.

Rowney Sports

Universal Derailleur Hanger

The Rip­mo AF UDH fea­tures a UDH derailleur for max­i­mum future com­pat­i­bil­i­ty and moves to a 55mm chain line. The wider chain line allows for a stiffer chainstay.

Rowney Sports

Modern Geometry

With a steep, 76-degree seat tube angle and a rangy but not stratospheric reach, the Ripmo AF places riders centrally and upright over the bottom bracket. It makes for an efficient position that can go the long haul without placing too much weight on its slack, 64.9-degree headtube angle. A 44mm reduced-offset fork is more surefooted on steep descents and steadies high speeds. Better up, better down.

Other Key features

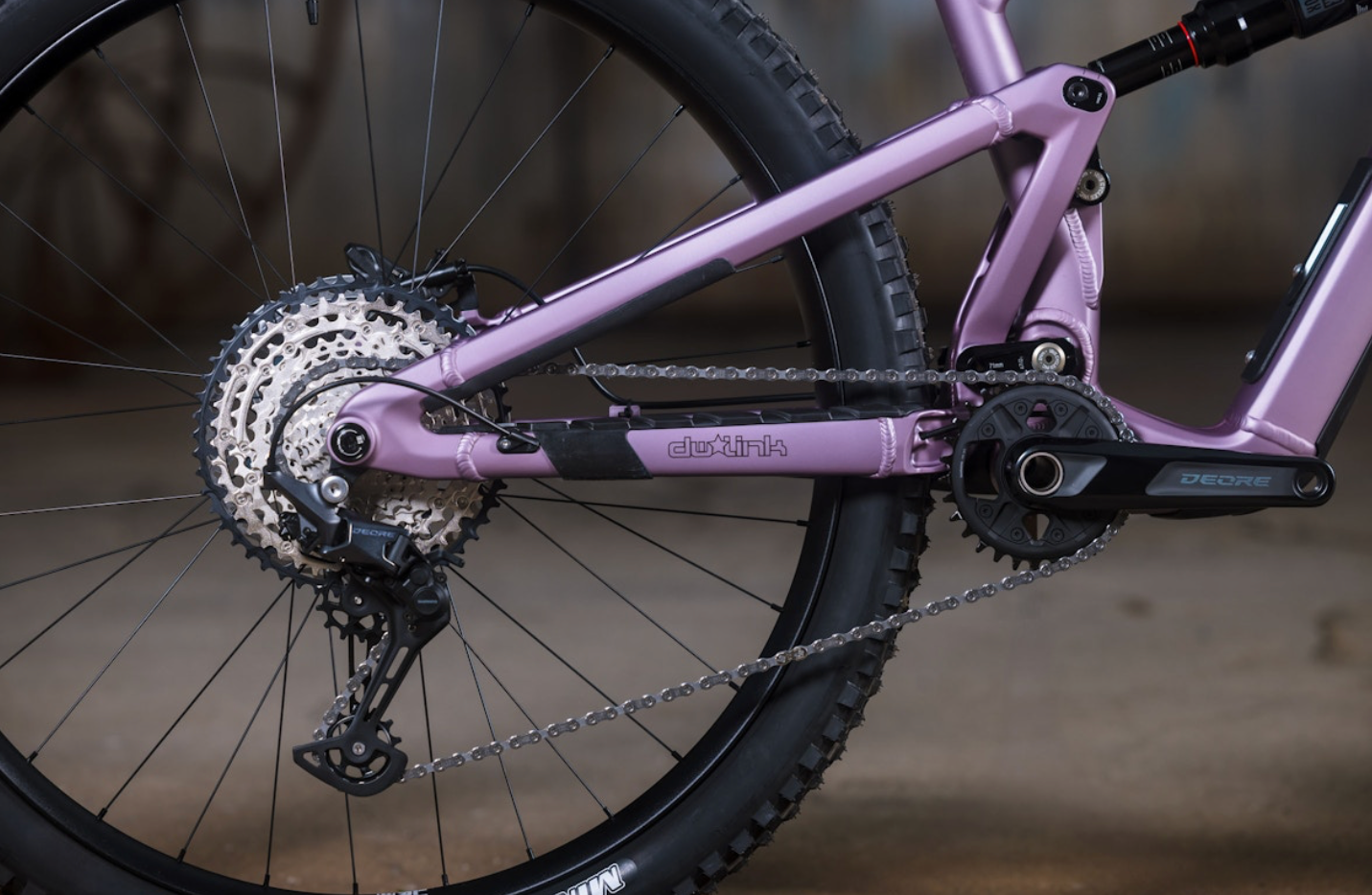

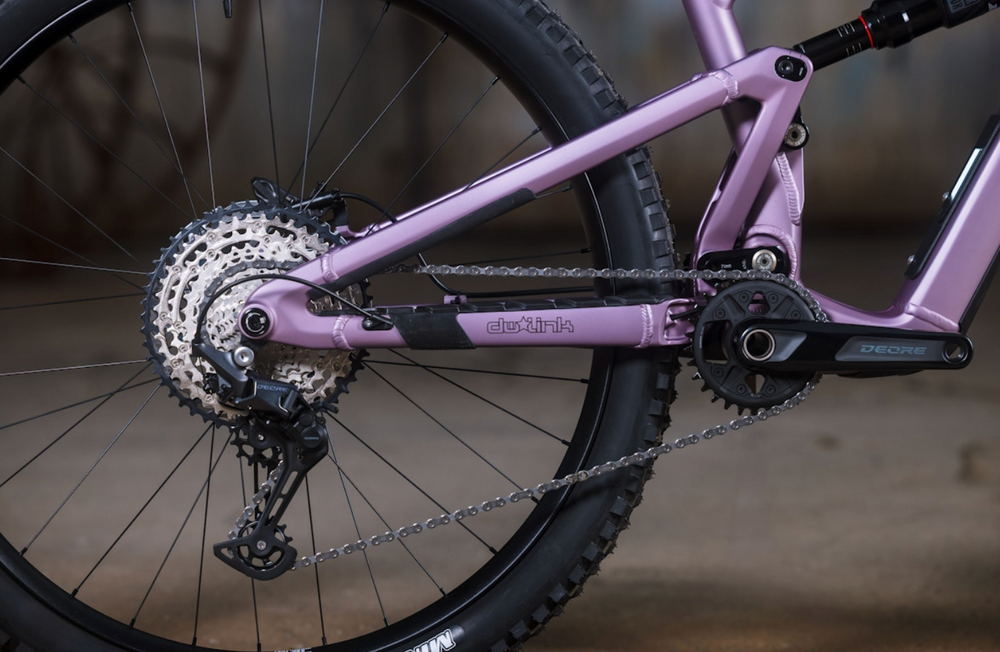

DW Link

We continue to use the critically acclaimed dw-link suspension platform known for its efficient climbing and strong downhill performance; it sets the standard for modern mountain bikes.

Drawing on the race-proven HD6 design, the Ripmo now has a coil spring friendly progressive shock rate and shorter clevis which makes it compatible with pretty much any coil shock.

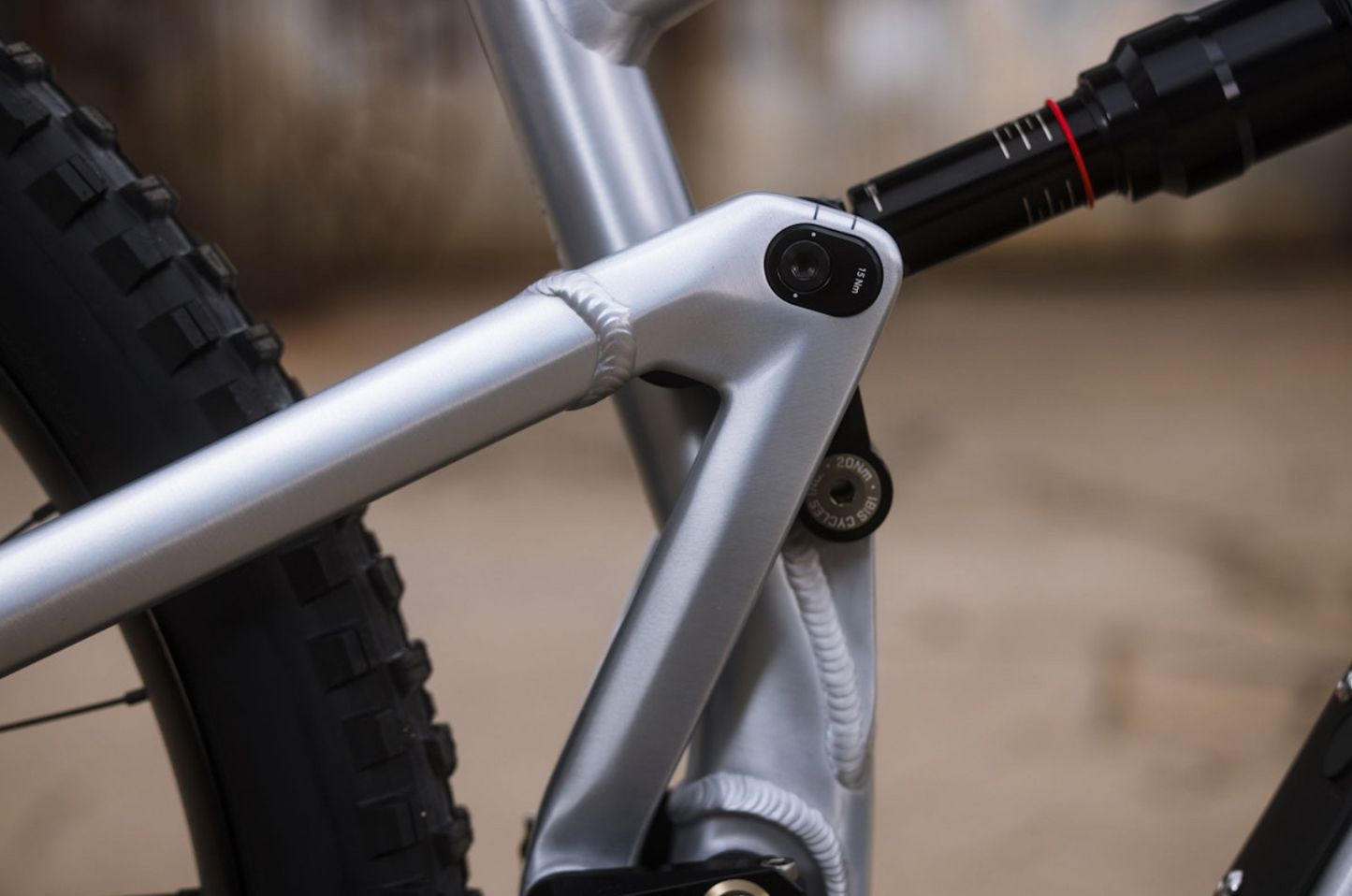

Air & Coil Compatible

The Ripmo AF is compatible with both coil and air shocks due to a more progressive leverage rate. It allows for coil’s linearity to thrive and we spec air shocks with tunes that provide pop without feeling too harsh. On the trail, it gives the suspension a supple feel throughout the entirety of the stroke, enhancing traction no matter how deep you dig.

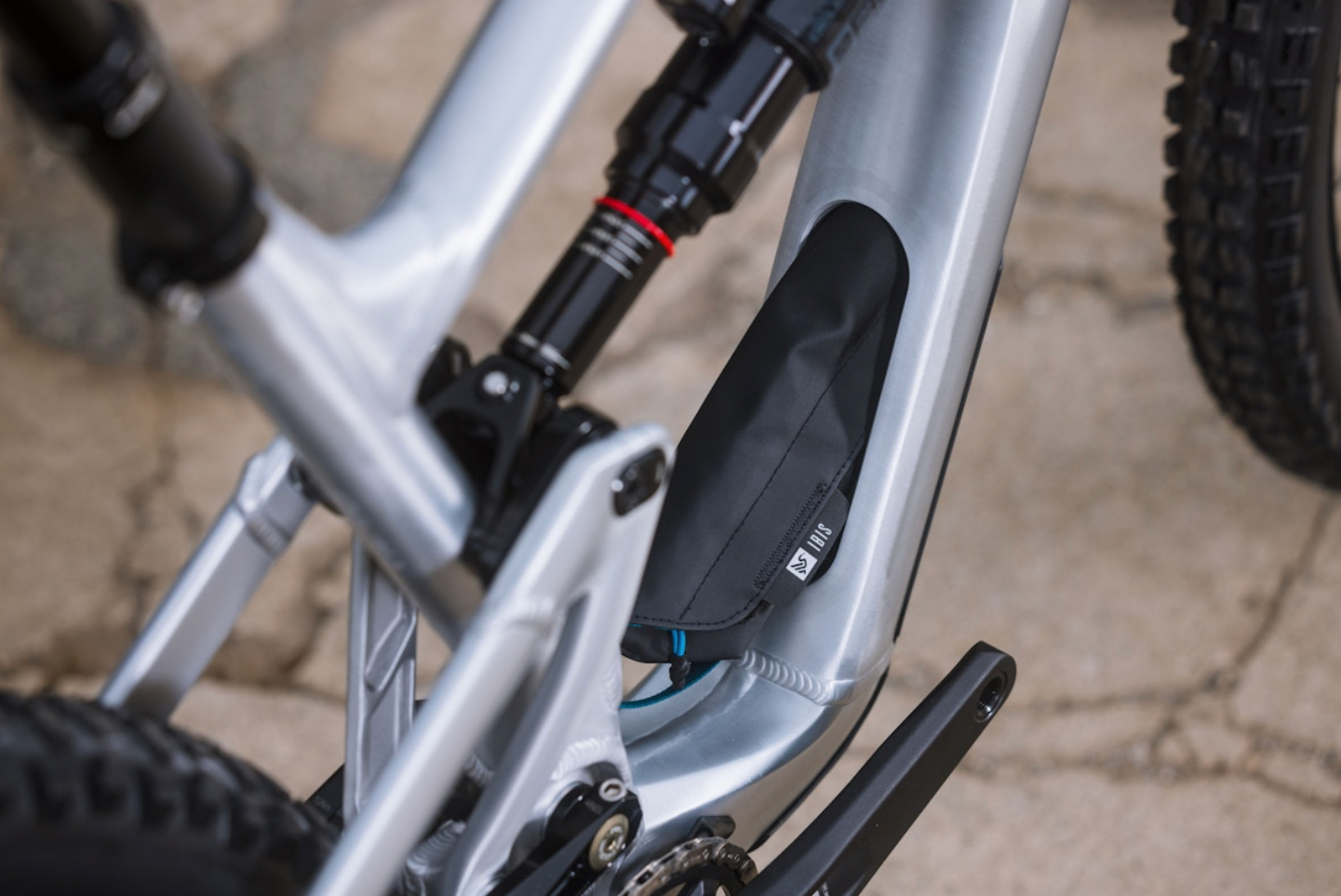

frame storage

Get that gear off your back and into your bike with our frame storage system. The latch operates effortlessly, even in cold, muddy conditions while wearing gloves. The door is water-resistant, rattle-free, and robust.

Ibis has crafted a set of two internal bags for your snacks, tools, or whatever. The bags are crafted from durable, and water-resistant materials, with a bright interior to help see your stored items.

make an inquiry
Rowney Sports
Rowney Sports

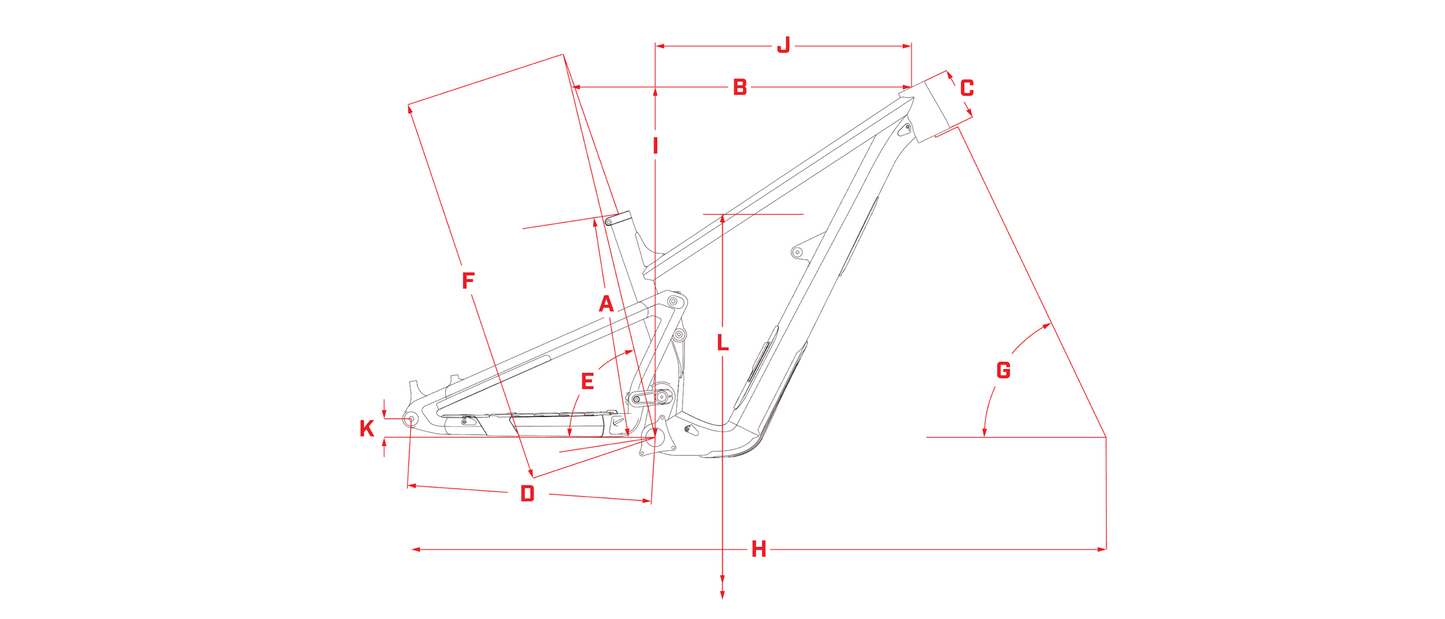

160mm Fork (575mm axle to crown)

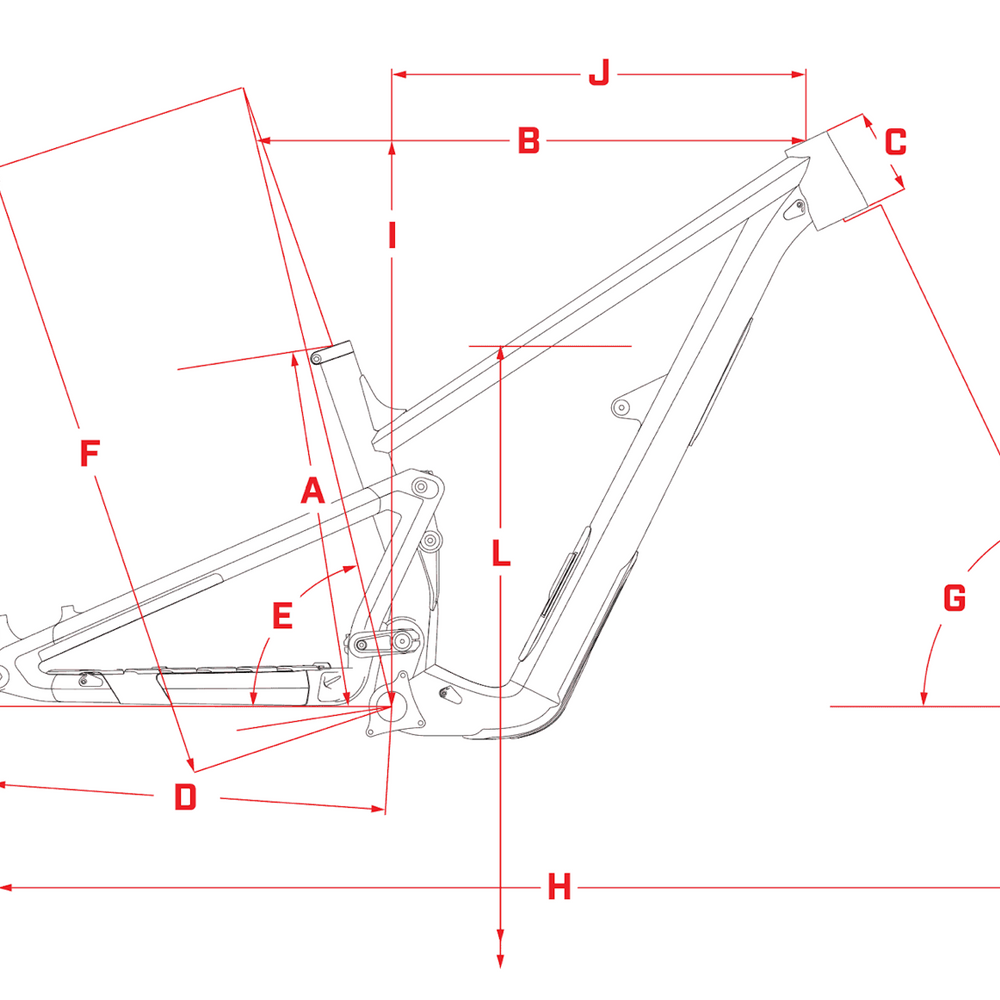

Nominal Size SM MD XM LG XL
Seat Tube Length A 395 400 415 457 477
Top Tube Length B 578 605 630 655 685
Head Tube Length (4mm stack of lower cup not included) C 85 95 110 125 140
Chainstay Length 29" D 435 435 436 438 440
Chainstay Length MX D 432 432 433 435 437
Seat Tube Angle E 77° 76.5° 76.5° 77° 77.5°
Saddle Height for Seat Tube Angle F 650 700 745 790 830
Head Tube Angle G 64.5° 64.5° 64.5° 64.5° 64.5°
Wheelbase H 1195 1219 1249 1286 1329
BB Height (with Maxxis 29x2.4 / 27.5x2.5 WT Rear Tyres) 338 341 344 349 350
BB Drop 29" K 36 33 30 27 24
Stack I 616 622 633 643 654
Reach J 436 456 478 506 540
Standover L 693 734 757 772 784
Recommended Seatpost Drop 140 170 185 213 213
Crank Length 165 165 170 170 170
Tyre Size 2.35-2.5" 2.35-2.5" 2.35-2.5" 2.35-2.5" 2.35-2.5"
Water Bottle Size 1 x 769ml / 26oz 1 x 769ml / 26oz 1 x 769ml / 26oz 1 x 769ml / 26oz 1 x 769ml / 26oz

Kit Detail
RIPMO AF SHIMANO DEORE $6,290.00 AUD
RIPMO AF SRAM E90 $6,990.00 AUD
RIPMO AF (Frame Only) $4,390.00 AUD
Fork RockShox Lyrik, 29-160mm, 15QR x 110 RockShox Lyrik, 29-160mm, 15QR x 110
Shock RockShox Super Deluxe Select+ 230mm x 60mm RockShox Super Deluxe Select+ 230mm x 60mm RockShox Super Deluxe Select+ 230mm x 60mm
Wheels Blackbird Send Alloy (Front: Send I, Rear: Send II), SM–MD F: Send I 29 R: Send II 27.5, XM–XL F: Send I 29 R: Send II 29 Blackbird Send Alloy (Front: Send I, Rear: Send II), SM–MD F: Send I 29 R: Send II 27.5, XM–XL F: Send I 29 R: Send II 29
Front Tyre Maxxis Assegai 29 x 2.5 Exo+ Maxxis Minion DHF 29 x 2.5 Exo+
Rear Tyre Maxxis Minion DHR II Exo+, SM-MD: 27.5 x 2.5, XM-XL: 29 x 2.5 Maxxis Minion DHR II Exo+, SM-MD: 27.5 x 2.5, XM-XL: 29 x 2.5
Brakes Shimano Deore, M6120, 4-Piston SRAM Maven
Rotors (F/R) Shimano RT-66 6-Bolt 203F/203R SRAM Centreline 6-Bolt 200F/200R
Crankset Shimano Deore M6120 24mm spindle SRAM Eagle 90 Transmission DUB, 30T Alloy Ring, SM-MD: 165mm, XM-XL: 170mm
Bottom Bracket Shimano MT501 SRAM DUB BSA
Rear Derailleur Shimano Deore M6100 SGS SRAM Eagle 90 Transmission
Shifter Shimano Deore, M6100 SRAM Eagle 90 Transmission Shifter
Cassette Shimano Deore, M6100, 10-51T SRAM XS 1275 Eagle Transmission 10-52
Chain KMC X12 Silver Chain SRAM GX Eagle Transmission
Headset Cane Creek 50 ZS44/ZS56 Cane Creek 50 ZS44/ZS56
Grips Lizard Skin Charger Lizard Skin Charger
Handlebar Ibis Aluminum, 780mm Ibis Aluminum, 780mm
Stem Ibis 31.8mm, SM–MD: 40mm, XM–XL: 50mm Ibis 31.8mm, SM–MD: 40mm, XM–XL: 50mm
Seatpost KS Vantage Dropper, SM: 110-140mm, MD-XM: 140-170mm, LG-XL: 180-210mm KS Vantage Dropper, SM: 110-140mm, MD-XM: 140-170mm, LG-XL: 180-210mm
Saddle WTB Silverado Fusion CrMo 142 WTB Silverado Fusion CrMo 142
