e-Bike Kinematics
With the right suspension an e-MTB can do things a pedal bike can’t, taking you further, faster. Sixfinity delivers a suspension design that is expertly tuned for the added weight, speed and demands of an e-MTB.
EFFICIENCY AND TRACTION. OPTIMIZED
At sag, the anti-squat value is lower than our traditional bikes. This is ideal for the greater acceleration and higher speed hits while pedaling on an e-MTB.
Traction and Composure.Achieved
Due to the greater mass of an e-MTB, we reduced the anti-rise magnitude to 65%. Anti-rise remains consistent across the entire travel range, striking a balance for the unique demands of the added weight and power of an e-MTB.
Hopped Up

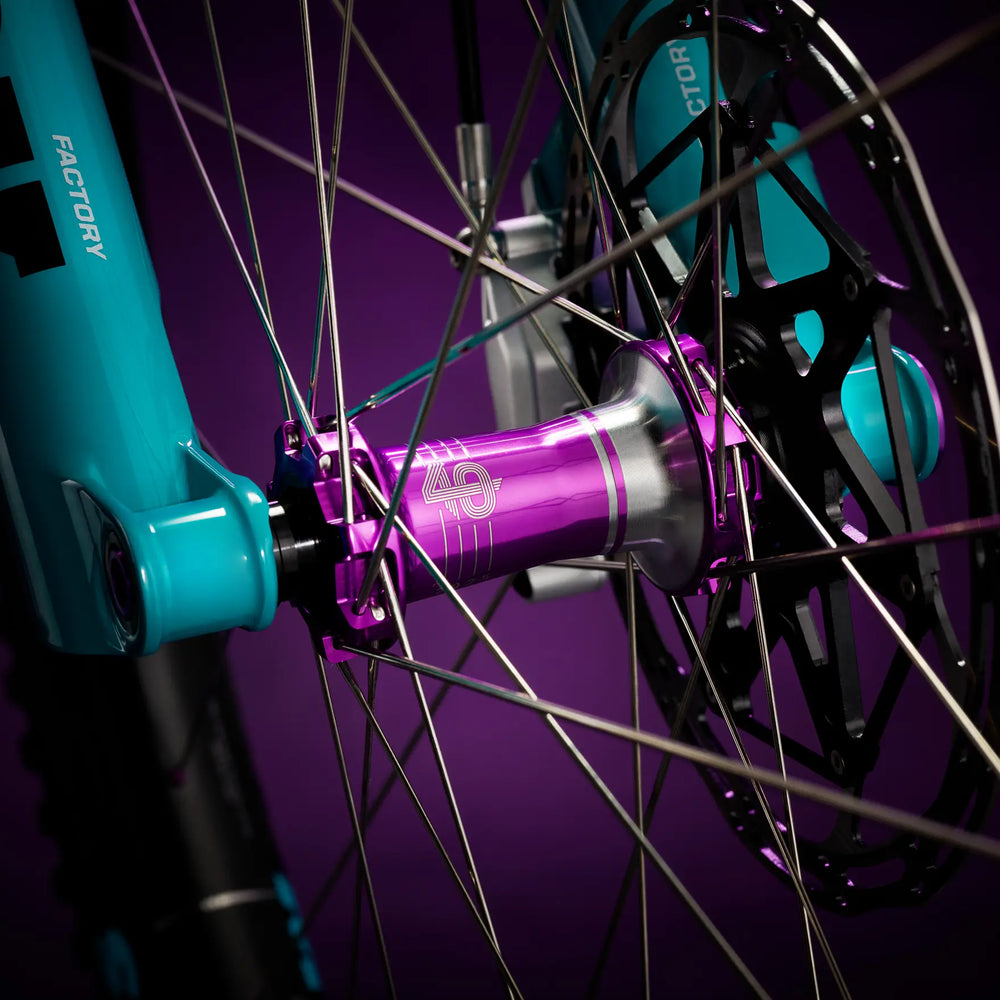

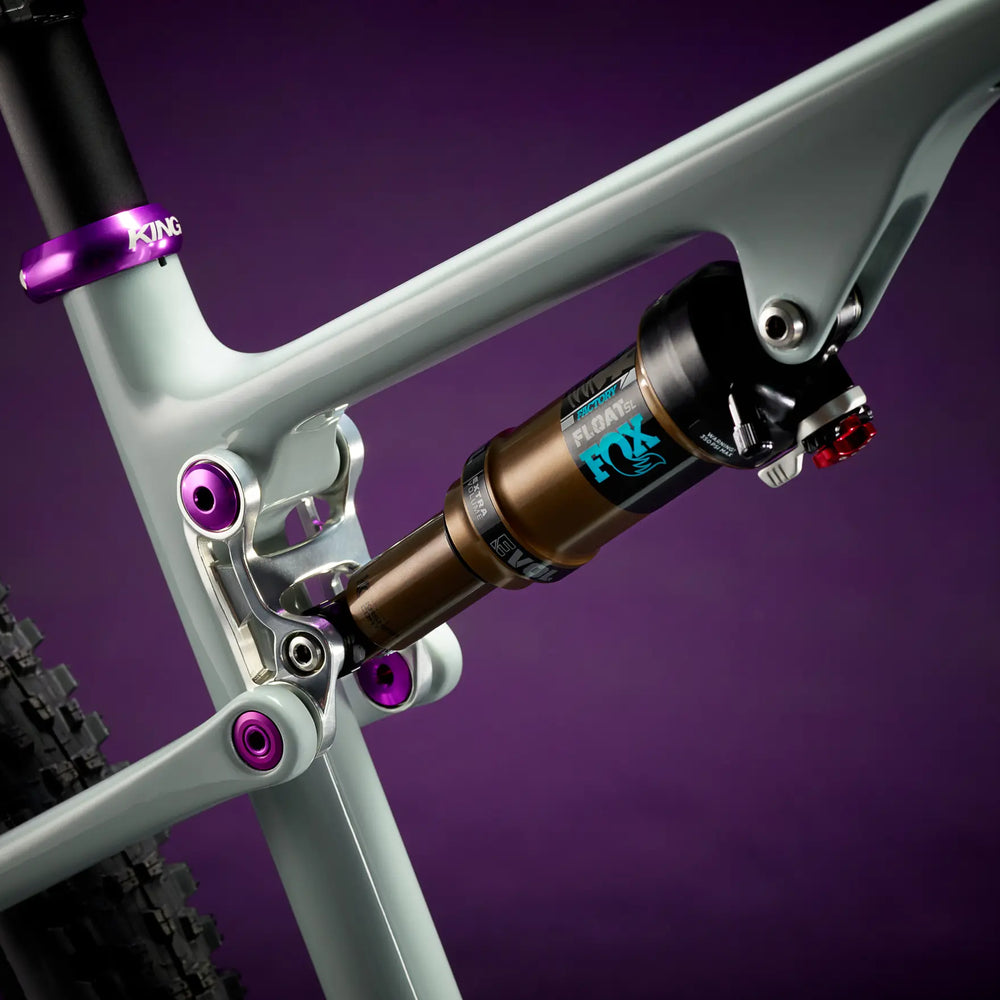

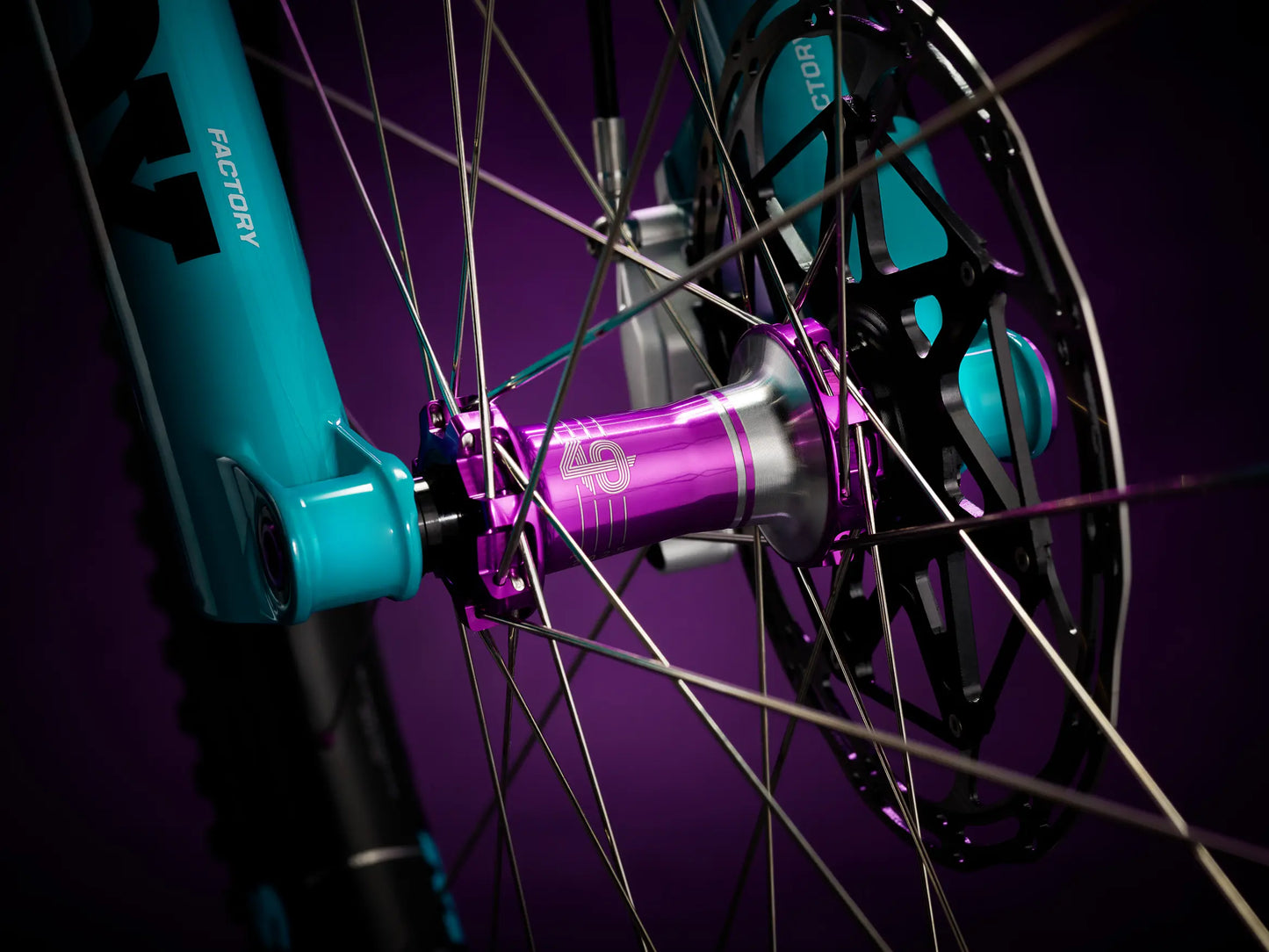

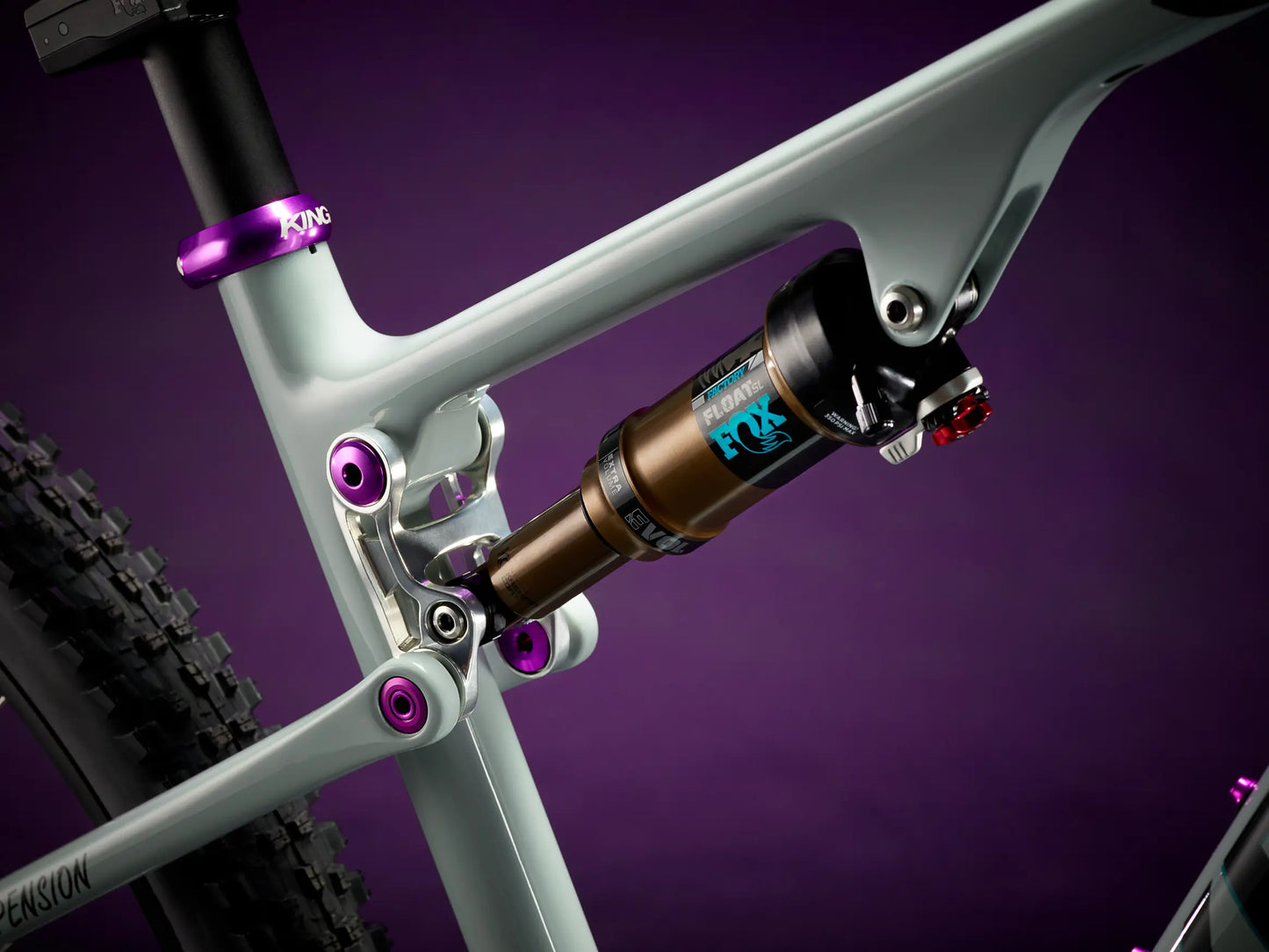

All the little details add up to perfection. Suspension hardware is custom anodized in 3D Violet, while the SL rocker link, custom-engraved Bike Yoke Barkeeper stem, and DT Swiss Revolite® spokes are high polished to show off the lust-worthy details.

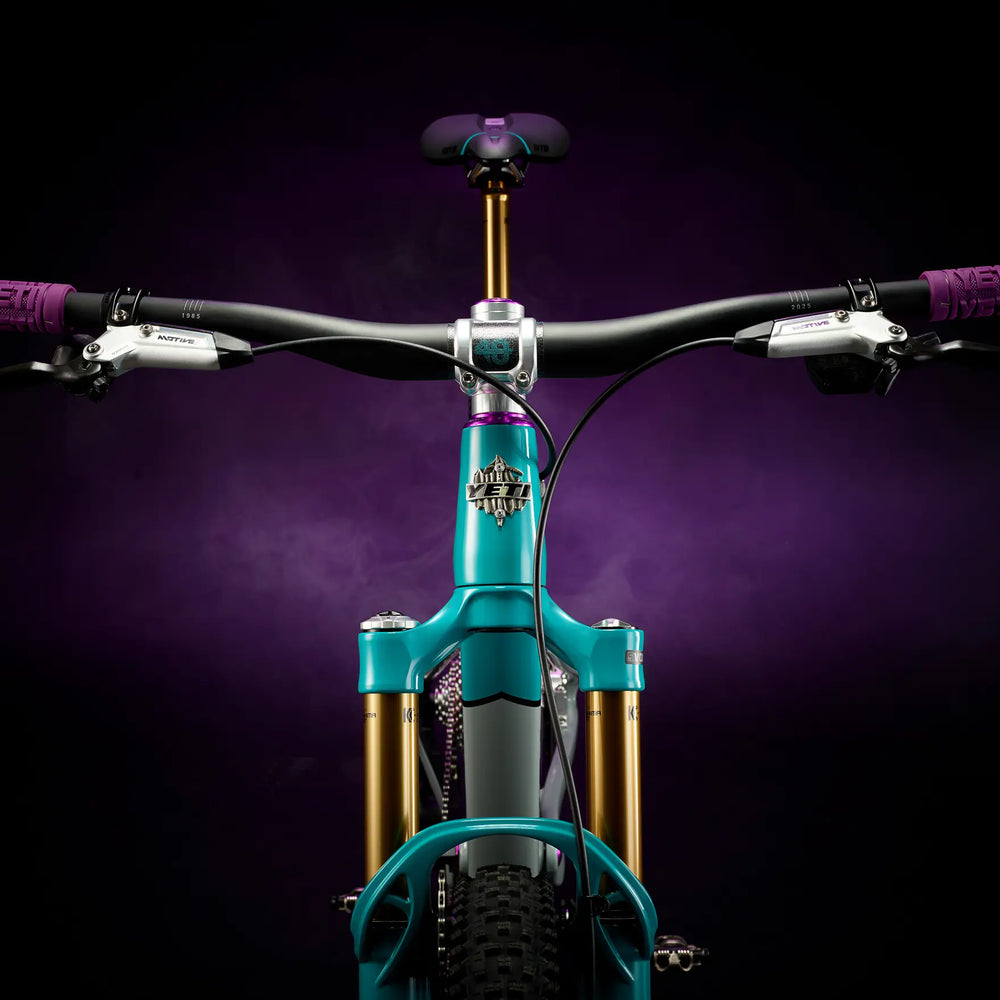

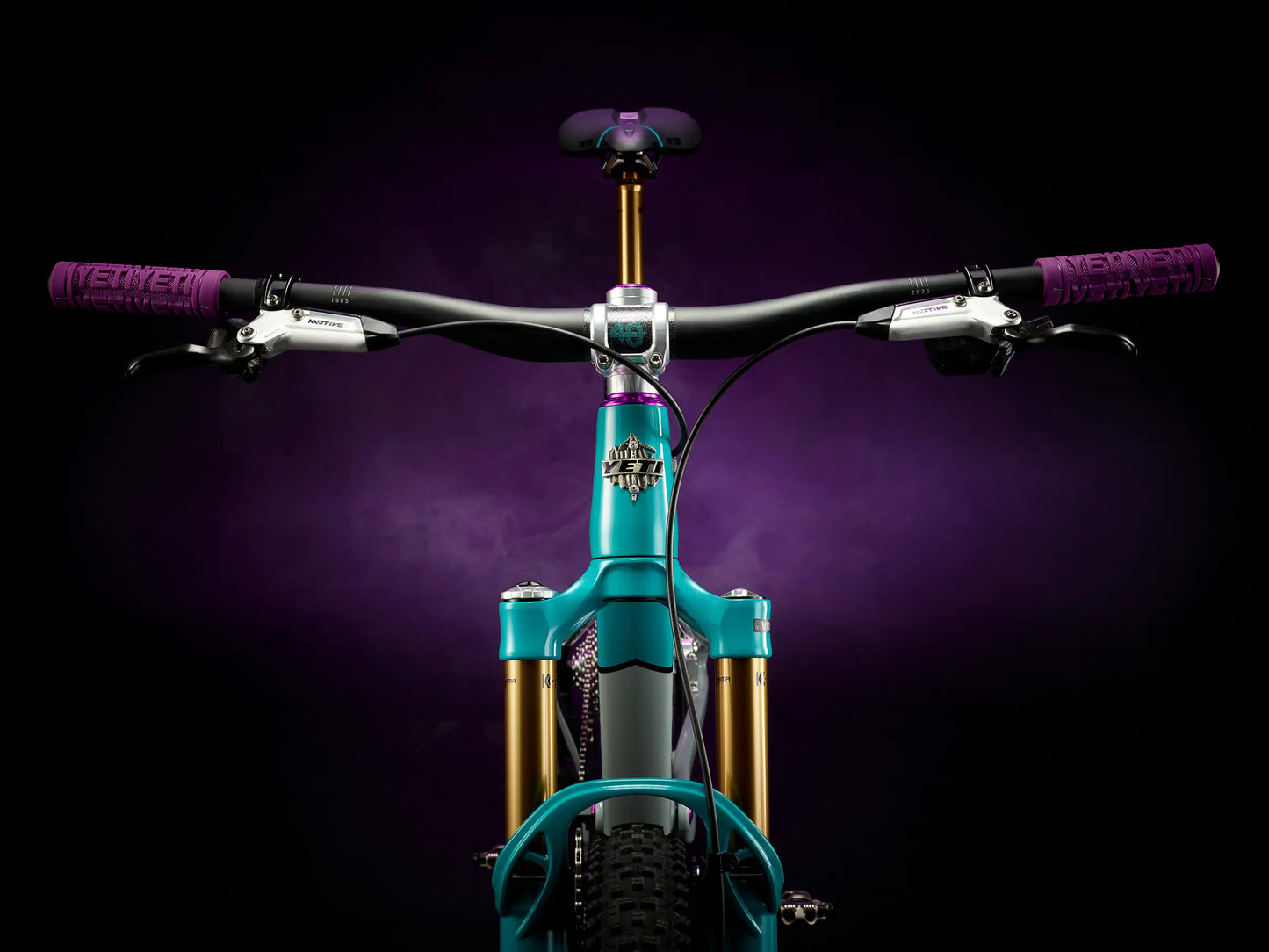

Get A Grip On Speed
This iconic collaboration between ODI and Yeti Cycles has been brought back to life from the original molds. These ODI Speed Grips are raced, just as they were by the legends of the 90s. “Tested and Perfected by some of the Fastest Racers on the planet.”
Custom Rubber
The Maxxis Forekaster 2.4 tires with custom Turquoise hotpatches bring the perfect balance and traction, the ideal pairing for the Anniversary ASR.

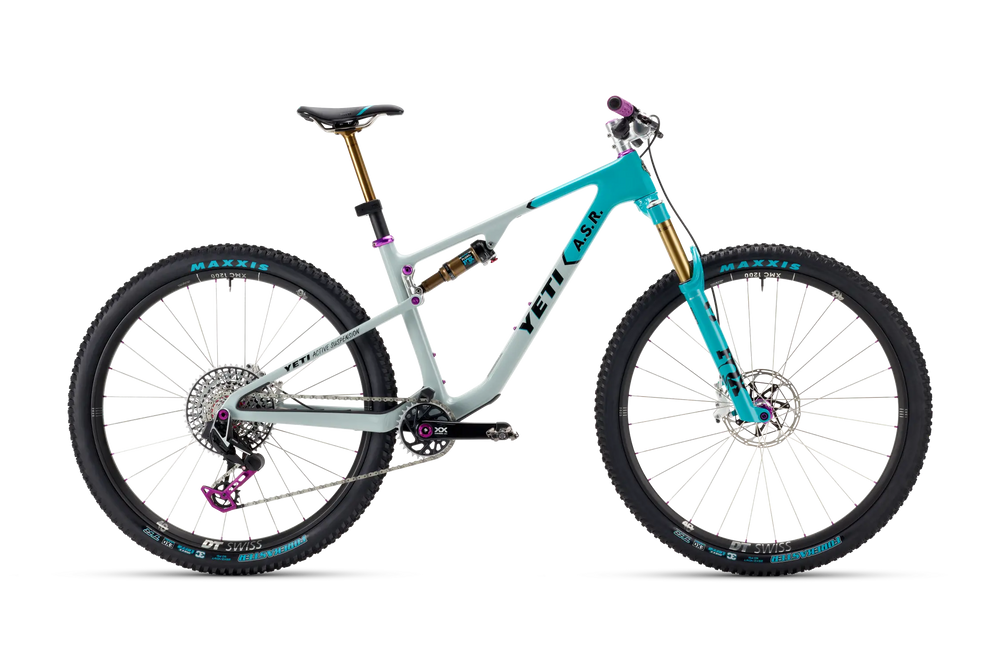

Trail Ready

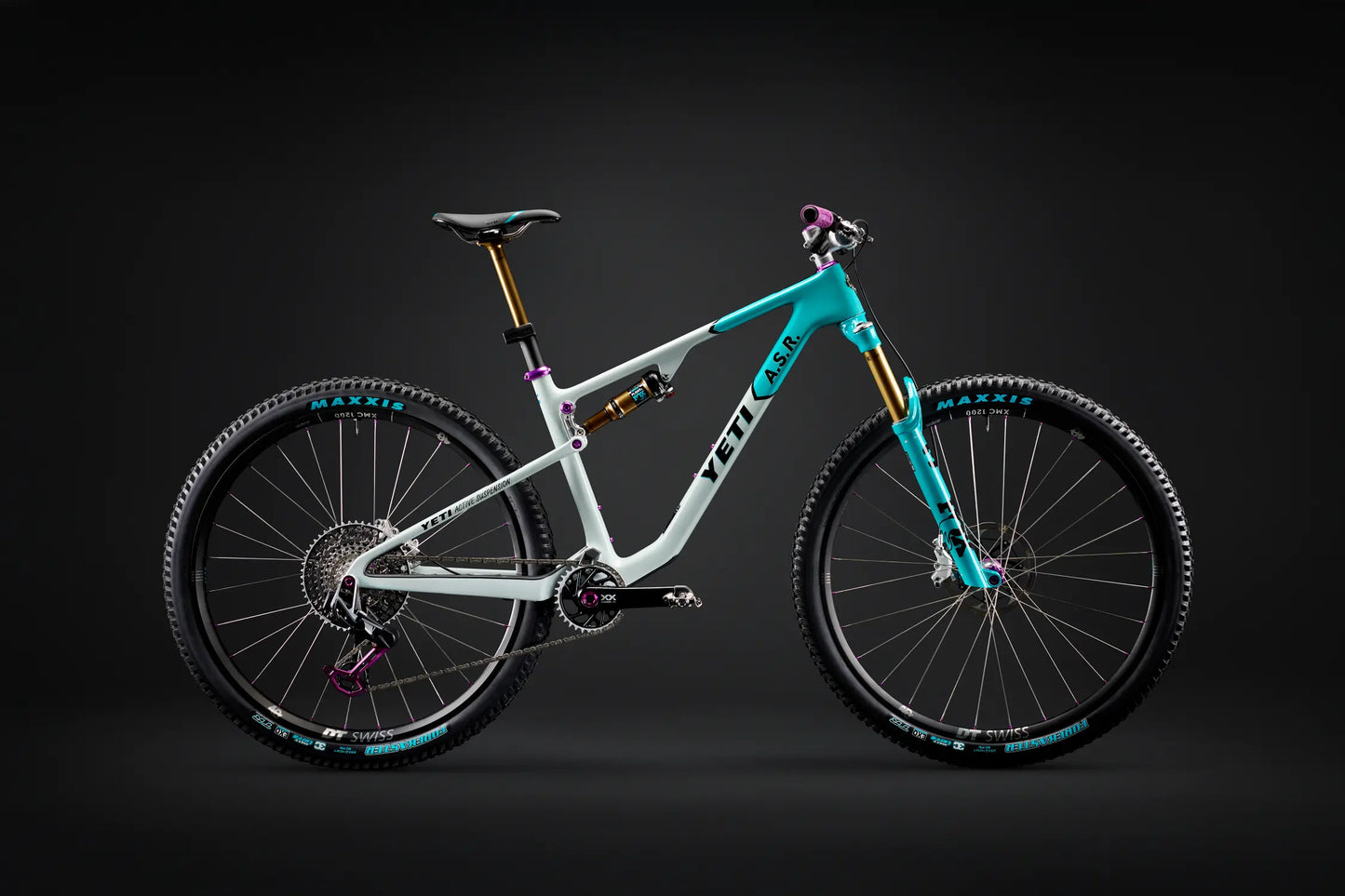

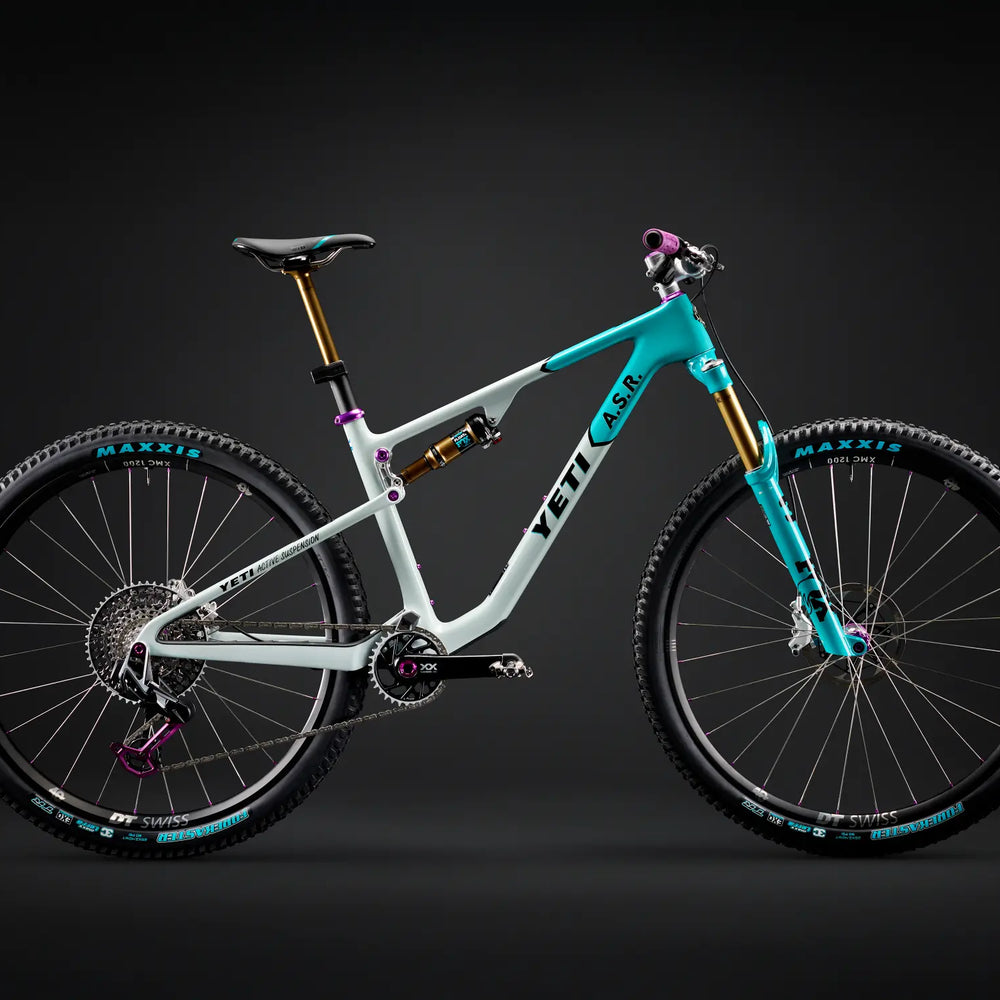

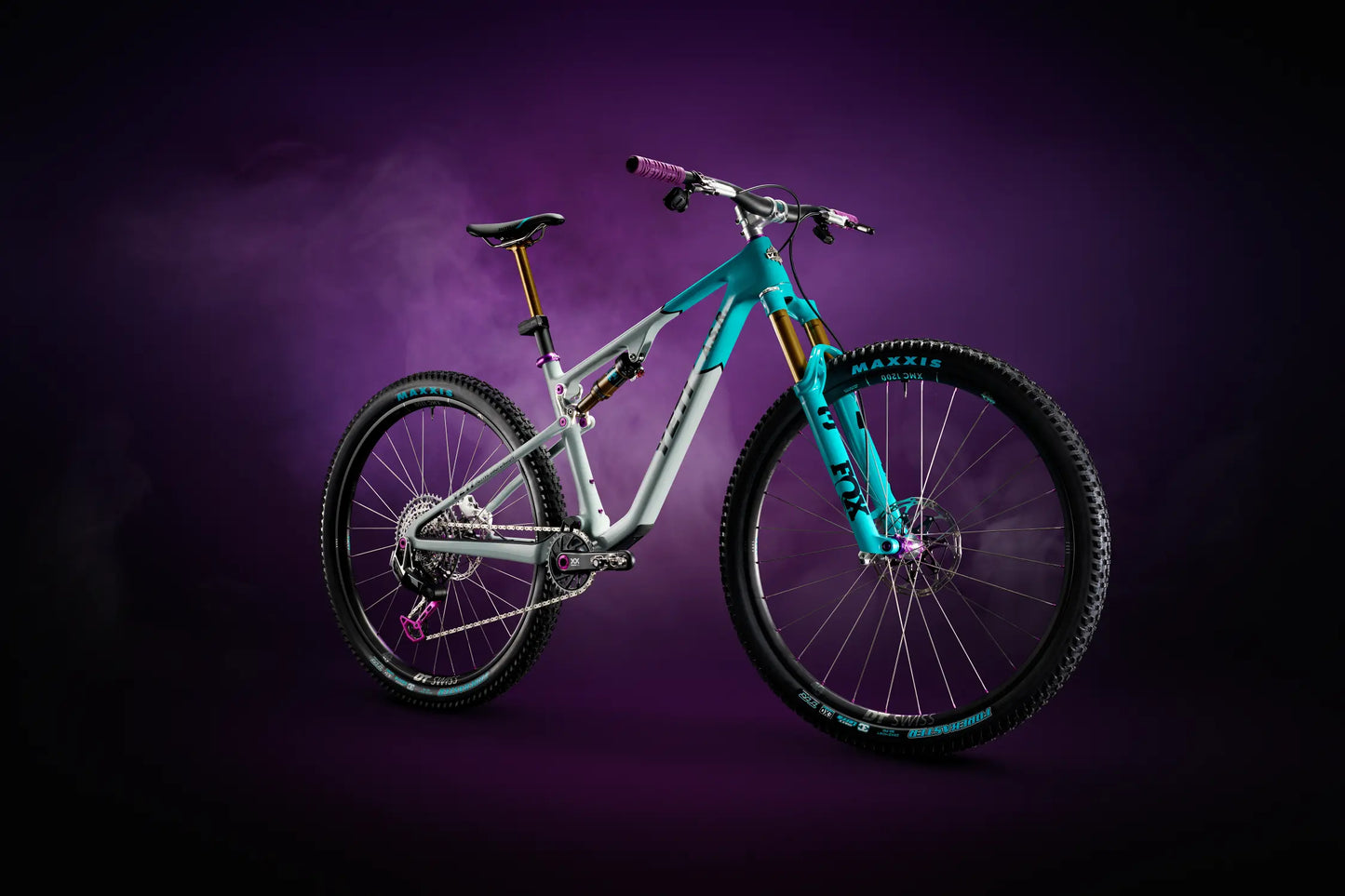

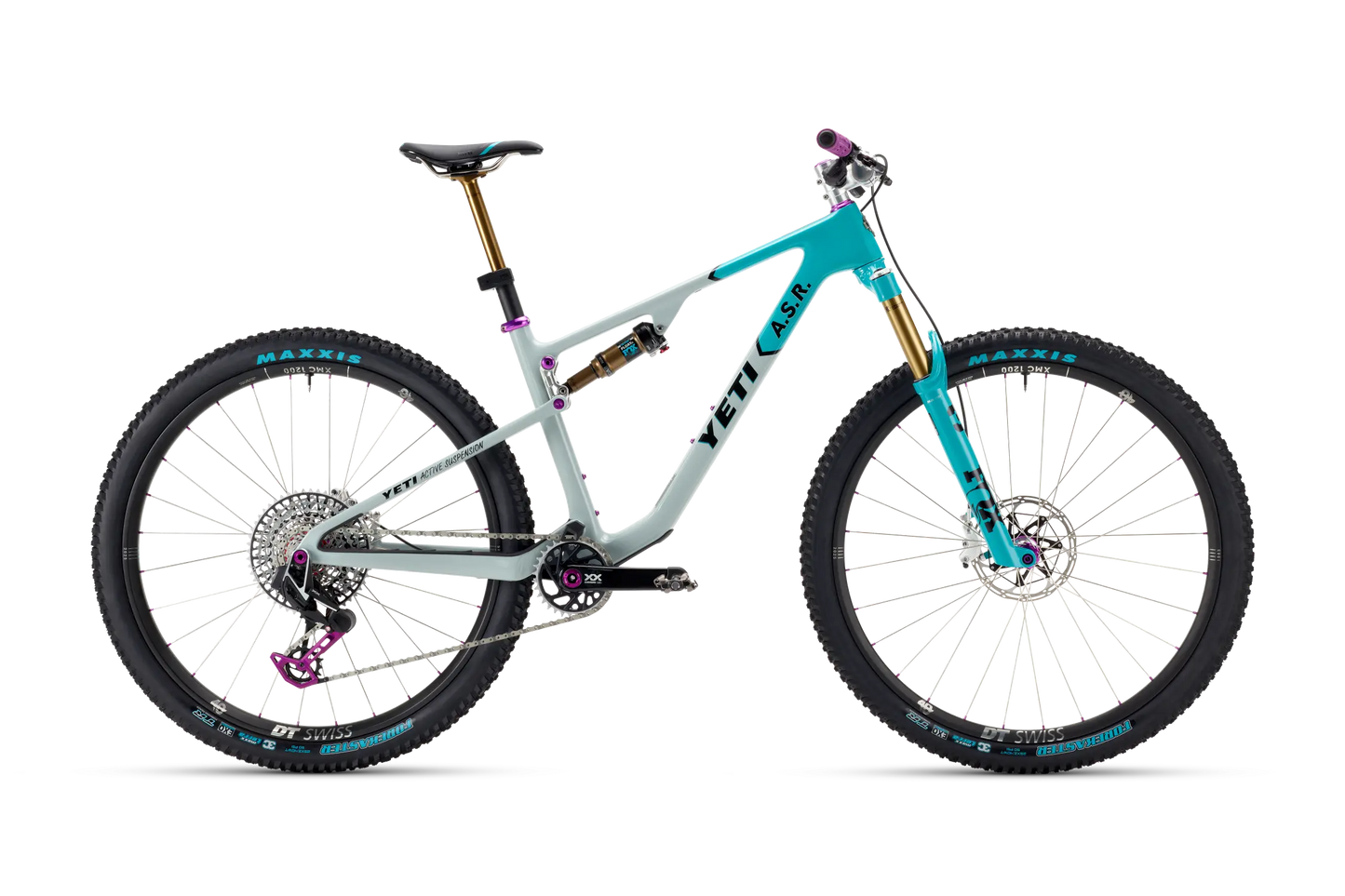

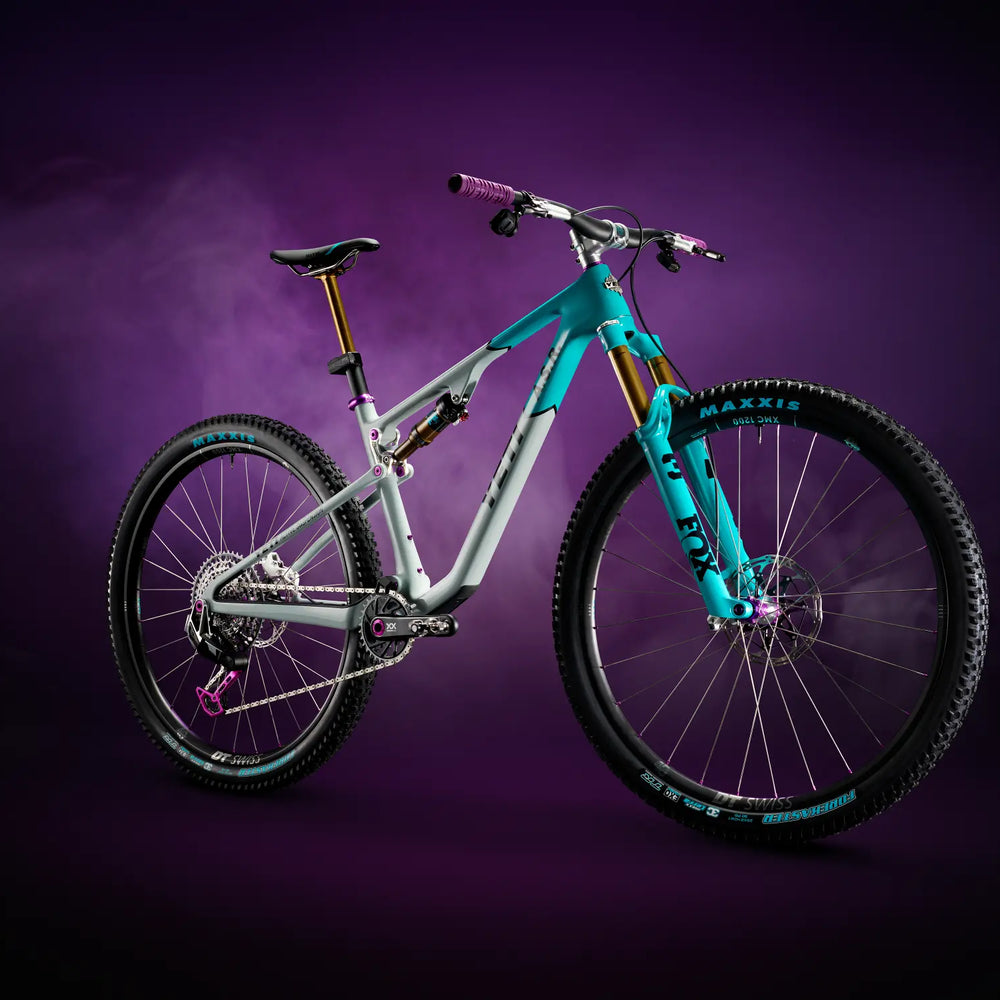

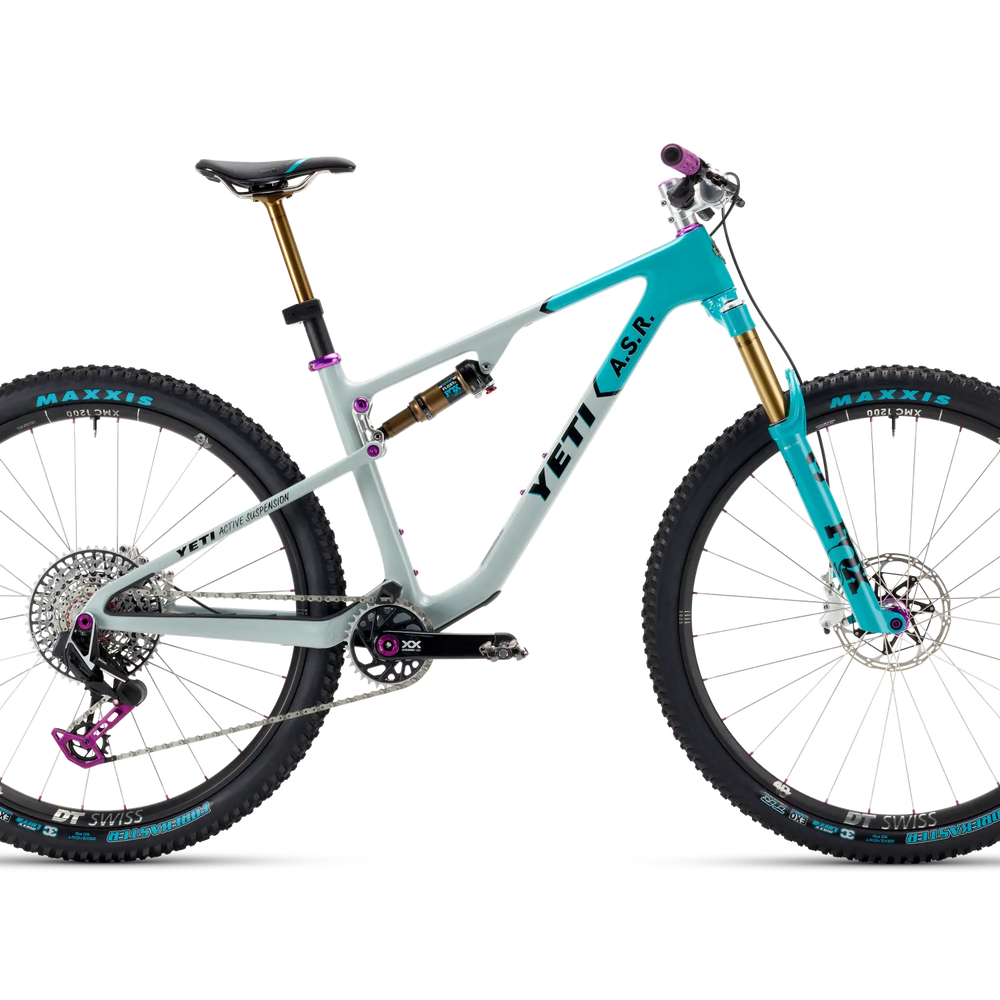

Shortly after launching the ASR we had a familiar thought: “What if we put a longer fork on this?” Well, here we are again, the 40th Anniversary ASR is born.
With 10mm more travel up front, the head angle gets a bit slacker. Finished with a FOX Float SL, Motive brakes, and Maxxis Forekaster tires, this ASR will be begging for more. Dare it. It’s ready.

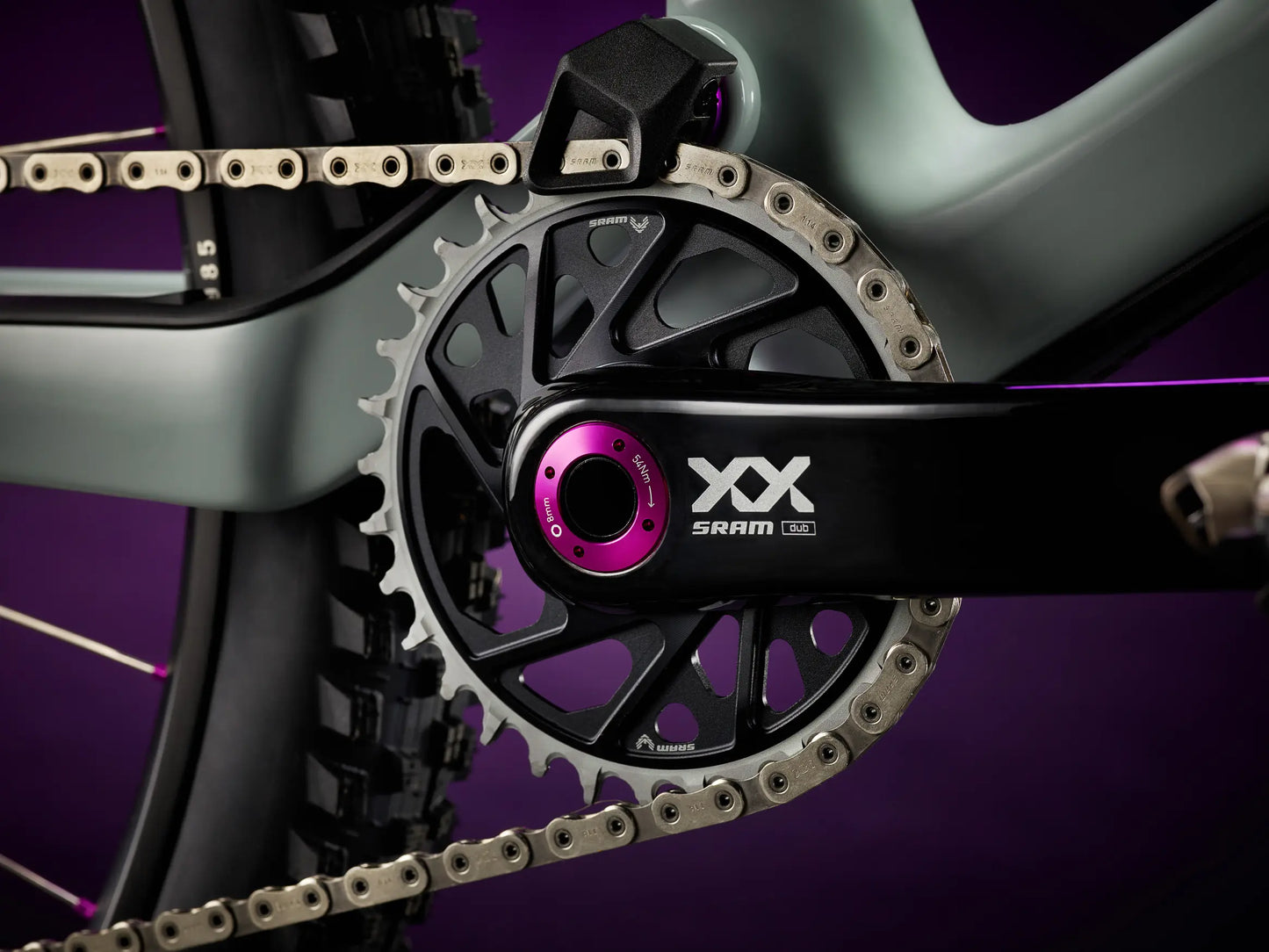

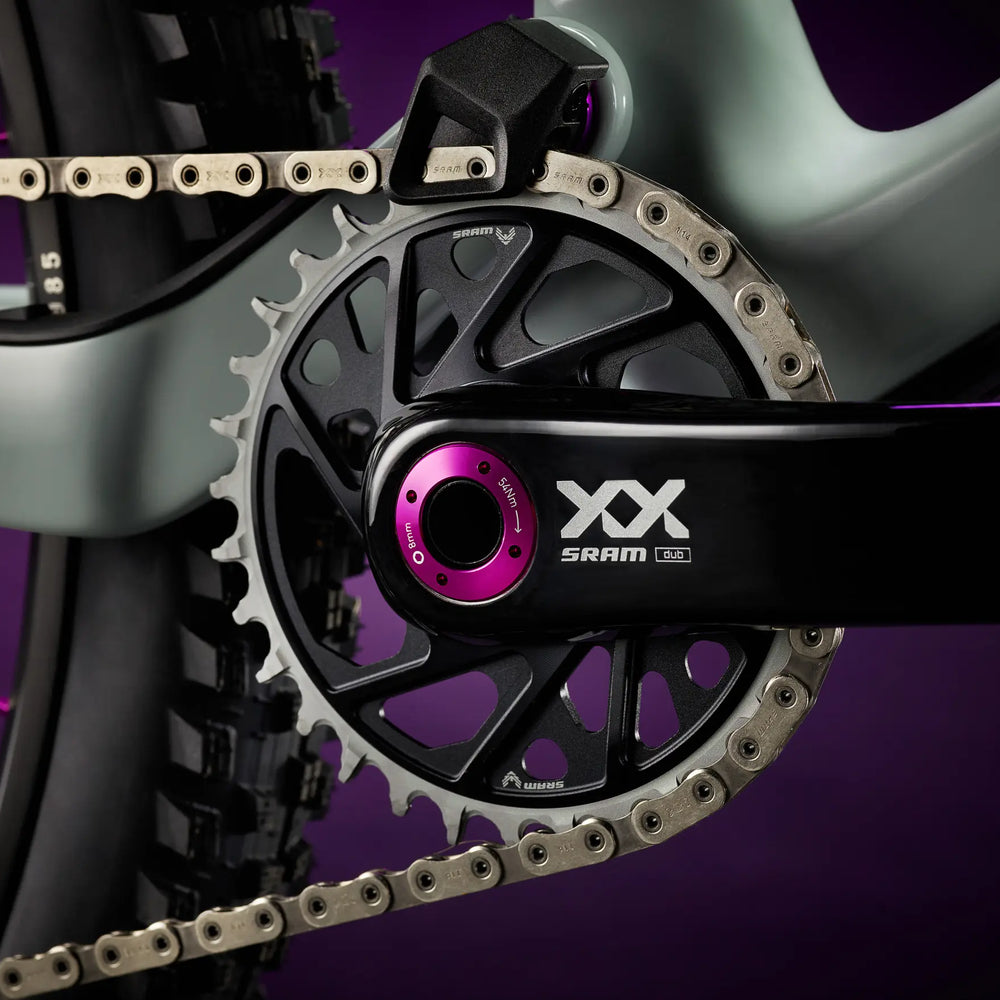

Custom SRAM
Tasteful hits of 3D Violet adorn the one-of-a-kind SRAM XX drivetrain, while the new silver Motive brakes add a vintage flair.

Violet Primer
Aside from a suspension fork, 24-speeds and bar-ends, nothing was more rad than having your bike tricked out with matching 3D Violet anodized parts. Many shades of anodizing ruled the roost in the 90’s, but it all started with 3D Violet.
Other Key features
WARRANTY: Built for life. No BS. No fine print.

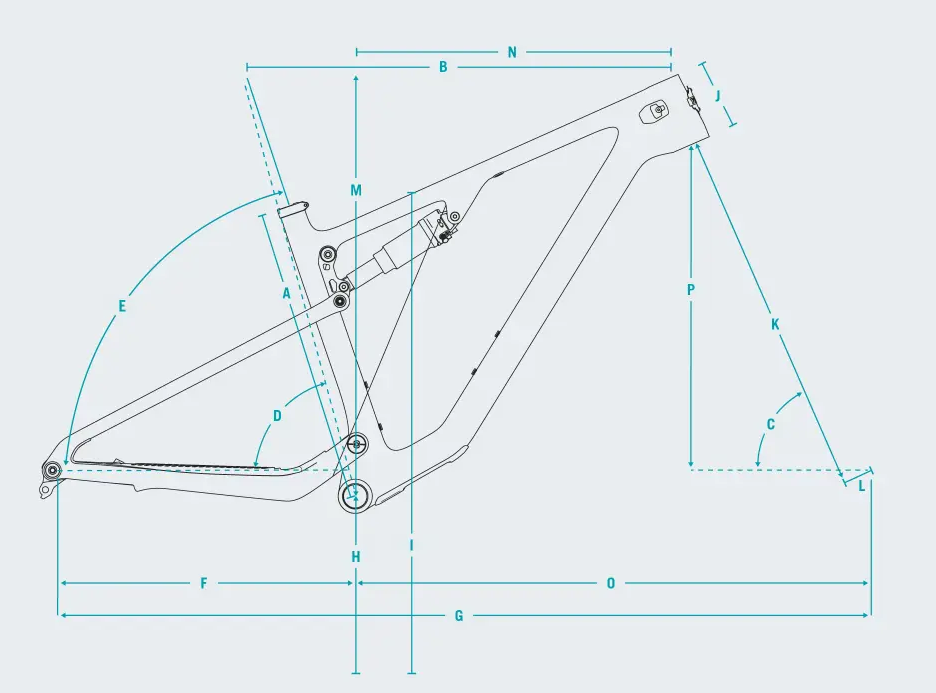

GEOMETRY
130MM FORK | S M | M D | L G | X L | ||
---|---|---|---|---|---|---|
A | SEAT TUBE LENGTH | 410 | 430 | 470 | 495 | |
B | EFF. TOP TUBE LENGTH | 575 | 602 | 625 | 655 | |
C | HEAD TUBE ANGLE˚ | 66.0 | 66.1 | 66.1 | 66.1 | |
D | EFF. SEAT TUBE ANGLE˚ | 75.0 | 75.0 | 75.0 | 75.0 | |
E | ACTUAL SEAT TUBE ANGLE˚ | 70.3 | 70.7 | 71.2 | 71.7 | |
F | CHAINSTAY LENGTH | 435 | 437 | 439 | 441 | |
G | WHEELBASE | 1148 | 1179 | 1205 | 1241 | |
H | ESTIMATED BB HEIGHT | 338 | 338 | 338 | 338 | |
I | STANDOVER | 773 | 775 | 775 | 780 | |
J | HEADTUBE LENGTH | 92 | 101 | 111 | 133 | |
K | FORK (AXLE TO CROWN) | 541 | 541 | 541 | 541 | |
L | FORK (OFFSET) | 44 | 44 | 44 | 44 | |
M | STACK | 596 | 603 | 614 | 634 | |
N | REACH | 415 | 440 | 460 | 485 | |
a | FRONT CENTER | 713 | 741 | 766 | 799 | |
P | VERTICAL FORK TRAVEL | 119 | 119 | 119 | 119 |
Specifications
TRAVEL | 115MM (4.5”) | |||||
MATERIAL | TURQ SERIES | |||||
WEIGHT | 24.4 LBS | |||||
FORK | FOX FACTORY 34 SL GRIP X 130MM ANNIVERSARY | |||||
SHOCK | FOX FACTORY FLOAT SL ANNIVERSARY | |||||
TIRE (F) | MAXXIS FOREKASTER 2.4 EXO ANNIVERSARY | |||||
TIRE (R) | MAXXIS FOREKASTER 2.4 EXO ANNIVERSARY | |||||
ROTOR (F) | SRAM CENTERLINE-X CL 180 | |||||
ROTOR (R) | SRAM CENTERLINE-X CL 180 | |||||
HEADSET | CHRIS KING DROPSET 3 ANNIVERSARY | |||||
WHEELSET | DT SWISS XMC 1200 SPLINE 30MM ANNIVERSARY | |||||
GRIPS | ODI YETI SPEED ANNIVERSARY | |||||
BAR | YETI 35X760 ANNIVERSARY | |||||
STEM | BIKE YOKE BARKEEPER 55MM ANNIVERSARY | |||||
CRANK | SRAM XX TRANSMISSION 32T 170MM ANNIVERSARY | |||||
B B | CHRIS KING THREADFIT BSA 73 ANNIVERSARY | |||||
SADDLE | WTB SOLANO SL ANNIVERSARY | |||||
BRAKES | MOTIVE ULTIMATE 4P - EMBARGO | |||||
DERAILLEUR | SRAM XX EAGLE AXS TRANSMISSION ANNIVERSARY | |||||
CASSETTE | SRAM XX EAGLE TRANSMISSION 10-52 | |||||
CHAIN | SRAM XX EAGLE TRANSMISSION FLATTOP | |||||
SHIFTER | SRAM AXS POD ULTIMATE CONTROLLER ANNIVERSARY | |||||
POST | FOX FACTORY TRANSFER NEO 31.6MM / SM: 125MM MD-XL: 150MM |
