MY26 Ibis Cycles Exie USA (Frame Only)

$5,990.00 AUD
Color
Blood Orange Burgundy
Frame Size
Find A Dealer Make an Inquiry

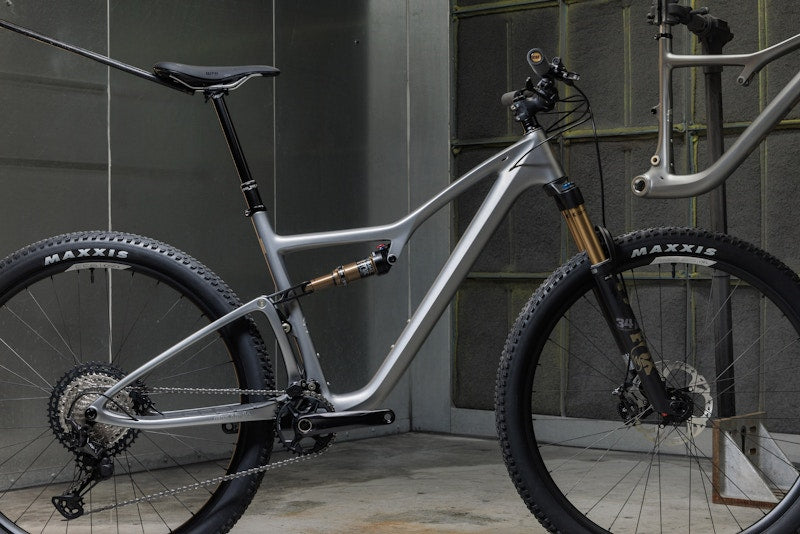

Exie USA

The Exie USA is a World-Cup winning cross-country race bike that flat out shreds. With a sub 2,000g frame weight and dw-link suspension, it offers a stunning combination of pedaling efficiency and downhill performance. We designed, built, and test­ed it in our Santa Cruz factory, which is pow­ered by the warm Cal­i­for­nia sunshine.

2.4” Tire Clearance

You can run over­built, chunky tires; you can run light, big vol­ume fast tires, but what­ev­er you run, you’re not lim­it­ed by width.

2x Bottle Clearance

The Exie USA has clearance for two water bottles inside the front triangle on every size frame.

Integrated chain guide

Drop the hammer, not your chain.

Lifetime Warranty

If it’s our fault, we’ll fix it. Sim­ple as that.

register

100MM

REAR TRAVEL.

120MM

FRONT TRAVEL.

29"

WHEELS. UP TO 2.4" TIRES.

Rowney Sports

Race Proven

Jenny Rissveds won the 2024 XCO World Cup Cross Country season open on the Ibis Exie, a bike we quite literally made in our own backyard here in Northern California! In the past two seasons, the Exie has won 1 XCO, 2 XCC races, and been on the podium at races around the world.

Rowney Sports

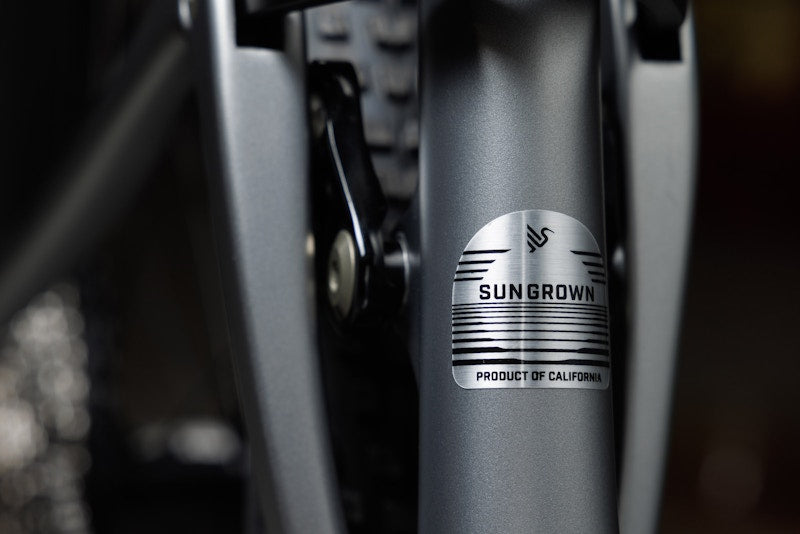

Built by US

We build each Exie USA in our Northern California factory. This gives us the utmost control, which enable us to hit remarkable frame strength, stiffness, and weight targets for this frame.

Rowney Sports

Size Specific Seat Angles

Whether you’re racing short track or on a multi day epic, the Exie’s seat tube angles allows you to harness your strongest muscles, while reducing any potential knee or wrist strain. We’ve also steepened the seat tube angles as the frames get larger, to allow riders with different inseams to achieve the same riding positions.

Other Key features

DW-Link Suspension

Don’t squander a single watt. Our dw-link suspension platform offers incredible climbing efficiency and traction along with plush, downhill-crushing goodness.

Ride More, Wrench Less

We use bushings where it makes sense and bearings where it doesn’t. The IGUS bush­ings in our low­er link are lighter, stiffer, and vir­tu­al­ly main­te­nance free. We’ve also added features like a threaded bottom bracket to help make any future maintenance easy.

Internal Cable Routing

Internal cable routing doesn’t have to be a pain. We’ve added internal tubes to our tubes, no picksets, flashlights, or swear words required.

make an inquiry
Rowney Sports
Rowney Sports

120mm Fork (530mm axle to crown; 2.4" Rekon Race Tires)

Nominal Size SM MD LG XL
Seat Tube Length A 356 406 457 508
Top Tube Length B 584 613 644 675
Head Tube Length C 85 95 110 135
Chainstay Length D 435 435 435 435
Seat Tube Angle E 73.8° 73.8° 74.8° 75.9°
Head Tube Angle F 67.2° 67.2° 67.2° 67.2°
Wheelbase G 1128 1158 1202 1253
Stack 582 592 606 630
Reach 413 439 478 519
Standover 722 727 748 754
Trail 110 110 110 110
BB Drop 28 28 28 28

Kit detail
EXIE SRAM E90 $9,900.00 AUD
EXIE SHIMANO XT Di2 $12,590.00 AUD
EXIE SRAM GX-T AXS $11,890.00 AUD
EXIE SHIMNAO XTR Di2 $17,490.00 AUD
EXIE USA (Frame Only) $5,990.00 AUD
Fork Fox Factory 34SL, Grip SL, 120mm Fox Factory 34SL, Grip SL, 120mm Fox Factory 34SL, Grip SL, 120mm Fox Factory 34SL, Grip SL, 120mm
Shock Fox Factory Float SL, 190x45mm Fox Factory Float SL, 190x45mm Fox Factory Float SL, 190x45mm Fox Factory Float SL, 190x45mm Fox Factory Float SL, 190x45mm
Wheels Blackbird Send Alloy, 32 Hole, Ibis Logo Hubs, 29" Ibis 933 Aluminum Rims, Ibis Hubs Ibis 933 Aluminum Rims, Ibis Hubs Ibis S28 Carbon Rims / 29" / i9 Hydra CL Hubs
Tires (F/R) Maxxis Rekon Race 29" x 2.4" Exo/TR WT Maxxis Rekon Race 29" x 2.4" Exo/TR WT Maxxis Rekon Race 29" x 2.4" Exo/TR WT Maxxis Rekon Race 29" x 2.4" Exo/TR WT
Brakes Shimano Deore, 2 Piston Shimano XT 2P Shimano XT 2P XTR 2P
Rotors (F/R) Shimano RT66 180F/160R Shimano RT-86 IceTech 180F/180R Shimano SM-RT86 180/160 XTR CL IceTech 180F/180R
Crankset SRAM Eagle 90 Transmission DUB, 30t Alloy RingS-M: 165mm, XM-XL: 170mm Shimano XT 24mm spindle SRAM GX Eagle DUB, 30t Alloy Ring XTR
Bottom Bracket SRAM DUB BSA Shimano XT SRAM DUB BSA XTR
Rear Derailleur SRAM Eagle 90 Transmission Shimano XT Di2 SGS SRAM GX Eagle Transmission XTR Di2 SGS
Shifter SRAM Eagle 90 Transmission Shifter Shimano XT Di2 Shift Switch SRAM GX Eagle Transmission XTR Di2 Shift Switch
Cassette SRAM XS 1275 Eagle Transmission 10-52 Shimano XT, 10-51T SRAM XS 1275 Eagle Transmission 10-52 XTR 10-51
Chain SRAM GX Eagle Transmission Shimano XT SRAM GX Eagle Transmission XTR
Chain Guide Ibis Top Guide Ibis Top Guide
Headset Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower Cane Creek 50: ZS44/ZS56 Cane Creek 40: IS 41/28.6 upper, IS 52/40 lower Cane Creek 50: ZS44/ZS56
Grips ESI Racers Edge Black ESI Racers Edge Black Lizard Skins Single Clamp Lizard Skins Single Clamp
Handlebar Blackbird 35 Aluminum Riser Bar 800mm BLKBRD 35 Carbon Riser Bar 800mm Ibis Hi Fi, 31.8mm, 800mm BLKBRD 35 Carbon Riser Bar 800mm
Stem BLKBRD 35 StemS–M: 35mm, XM–XL: 50mm BLKBRD 35 StemS–M: 35mm, XM–XL: 50mm Industry NineS/M: 40mm, L/XL: 50mm Industry NineS/M: 40mm, L/XL: 50mm
Seatpost KS Vantage DropperS: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm BikeYoke ReviveNote there is a 250lb rider weight limit on this post. BikeYoke ReviveNote there is a 250lb rider weight limit on this post. BikeYoke ReviveNote there is a 250lb rider weight limit on this post.
Saddle WTB Silverado Fusion CrMo 142 WTB Silverado Fusion CrMo 142 WTB Silverado Fusion CrMo 142 WTB Silverado Fusion CrMo 142
