MY26 Ibis Cycles HD6 (Frame Only)
Regular price
$6,490.00 AUD
Color
Traffic Cone Orange
Frame Size
MY26 Ibis Cycles HD6 (Frame Only)
Regular price
$6,490.00 AUD
Color
Traffic Cone Orange
Frame Size
Lightweight premium carbon
All our bikes are built from the highest grade materials and optimized for the best strength, weight, stiffness, and ride performance — no matter how much you spend. The HD6 frame is sub 6 lbs without shock and our complete Enduro ready builds weigh as little as 32 lbs.
Internal Cable Routing
Bikes that look pretty on the outside should look pretty on the inside. We use carbon fiber tubes molded within each frame. Push the cable in, watch it pop out - a beautiful moment indeed.
PROTECT YOUR INVESTMENT
A thick rubber downtube protector deflects debris, while our chainstay protector features thick raised sections to help dampen chain slap noise. And our simple-yet-elegant linkage protectors stop mud and rocks thrown by the tire, keeping your beautiful bike beautiful.
165MM
6.5" REAR TRAVEL.
180MM
7.1" FRONT TRAVEL.
29/27.5"
MIXED WHEEL SIZE.
Geometry
The 29" front wheel, bolstered by 180mm of travel, assures stability, whereas the 27.5" rear wheel allows for additional maneuverability. The 165mm of travel skillfully manages any fallout. With a 64 degree head tube angle, a BB height similar to Mojo HD5, and a 435mm chainstay length, the bike maintains an equilibrium between agility and stability.
Five Sizes
In order to place every size rider in the same position over the rear wheel, the HD’s seat tube angles get steeper as frame size increases. With four sizes, this would have resulted in larger jumps in reach, so we added a fifth size. The smaller increments across five sizes means that you can find just the right size. We encourage riders to choose their bike size based on their desired reach and top tube measurements.
Coil Compatible
Our upper link suspension layout is progressive enough to be sensitive off the top, yet supportive enough for the biggest hits. It is also compatible with all coil shocks, for those longer race stages that can tax air shock performance.
Other Key features

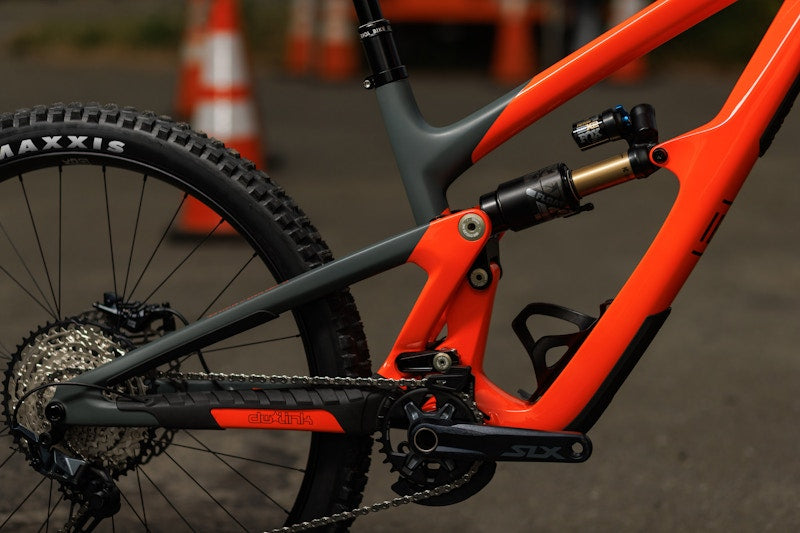

Dw-link
The suspension layout may be new, but it’s still DW-Link. The inherent efficiency means you don’t need an overdamped shock to climb well. Less shock damping allows the wheels to stay planted on the ground, providing more traction and that hover-bike feel that our frames are known for. The HD6 climbs with a finesse that defies its enduro race pedigree.
Traction Tune
Our custom tuned front and rear suspension feature extra light high speed compression and rebound damping to deliver unparalleled traction. This allows the wheels to flutter through rough terrain like a trophy truck storming through a set of whoops. To learn more about our Traction Tune philosophy.
Bushings
Tired of buying bearings each season? So were we. That's why we've strategically employed bushings where they're most effective and bearings elsewhere. The IGUS bushings in our lower link are not only lighter and stiffer, they're virtually maintenance-free. We believe so strongly in them, we back them with free lifetime replacement.
180mm Fork (593.7mm axle to crown)
| Nominal Size | SM (1) | MD (2) | XM (3) | LG (4) | XL (5) | |
|---|---|---|---|---|---|---|
| Seat Tube Length | A | 400 | 400 | 406 | 450 | 470 |
| Top Tube Length | B | 585 | 610 | 630 | 655 | 685 |
| Head Tube Length (4mm stack of lower cup not included) | C | 81 | 86 | 91 | 100 | 115 |
| Chainstay Length | D | 435 | 435 | 435 | 435 | 435 |
| Seat Tube Angle | E | 76° | 76° | 76.5° | 77° | 77.5° |
| Head Tube Angle | G | 64° | 64° | 64° | 64° | 64° |
| Wheelbase | H | 1202 | 1228 | 1256 | 1288 | 1328 |
| BB Height (with 2.5WT Maxxis Assegai tires) | 345 | 345 | 345 | 345 | 345 | |
| BB Drop | K | 30 | 30 | 30 | 30 | 30 |
| Stack | I | 621 | 625 | 630 | 638 | 651 |
| Reach | J | 430 | 454 | 480 | 508 | 541 |
| Saddle height for seat tube angle | F | 650 | 700 | 745 | 790 | 830 |
| Standover | L | 725 | 735 | 752 | 765 | 769 |
| Trail | 136 | 136 | 136 | 136 | 136 | |
| Fork Offset | 44 | 44 | 44 | 44 | 44 |
Kit Detail
|
|
HD6 SHIMANO DEORE
$8,690.00 AUD
|
HD6 SRAM E90
$8,990.00 AUD
|
HD6 SHIMANO XT Di2
$12,690.00 AUD
|
HD6 SRAM GX-T AXS
$11,890.00 AUD
|
HD6 SHIMANO XTR Di2
$15,490.00 AUD
|
HD6 (Frame Only)
$6,490.00 AUD
|
|---|---|---|---|---|---|---|
| Fork | Fox Factory 38, Grip X2, 180mm, 29”, 110mm x 15mm | Fox Factory 38, Grip X2, 180mm, 29”, 110mm x 15mm | Fox Factory 38, Grip X2, 180mm, 29”, 110mm x 15mm | Fox Factory 38, Grip X2, 180mm, 29”, 110mm x 15mm | Fox Factory 38, Grip X2, 180mm, 29”, 110mm x 15mm | |
| Shock | Fox Float X2 Factory Series with EVOL, 230mm x 65mm | Fox Float X2 Factory Series with EVOL, 230mm x 65mm | Fox Float X2 Factory Series with EVOL, 230mm x 65mm | Fox Float X2 Factory Series with EVOL, 230mm x 65mm | Fox Float X2 Factory Series with EVOL, 230mm x 65mm | Fox Float X2 Factory Series with EVOL, 230mm x 65mm |
| Wheels | Blackbird Send Alloy, 32 Hole, F: Send I 29”, R: Send II 27.5” | Blackbird Send Alloy, 32 Hole, F: Send I 29”, R: Send II 27.5” | Blackbird Send Alloy, 32 Hole, F: Send I 29”, R: Send II 27.5” | Blackbird Send Alloy, 32 Hole, F: Send I 29”, R: Send II 27.5” | Ibis S35 Carbon Rims / 29" / i9 Hydra CL Hubs | |
| Tires (F/R) | Maxxis Assegai, 29” x 2.5” / Maxxis DHR, 27.5” x 2.4” | Maxxis Assegai, 29” x 2.5” / Maxxis DHR, 27.5” x 2.4” | Maxxis Assegai 29x2.5 EXO+/ Maxxis DHR2 27.5x2.5 DD | Maxxis Assegai, 29” x 2.5” / Maxxis DHR, 27.5” x 2.4” | Maxxis Assegai, 29” x 2.5” / Maxxis DHR, 27.5” x 2.4” | |
| Brakes | Shimano Deore, M6120, 4-Piston | SRAM Maven | Shimano XT 4P | SRAM Code RSC, 4 Piston | XTR 4P | |
| Rotors (F/R) | Shimano RT-66 6-Bolt 200F/200R | SRAM Centerline 200 | Shimano XT RT-86 IceTech 203F/203R | SRAM Centerline 200 | XTR IceTech 203F/203R | |
| Crankset | Shimano Deore M6120 24mm spindle | SRAM Eagle 90 Transmission DUB, 30t Alloy RingS-M: 165mm, XM-XL: 170mm | Shimano XT, 24mm Spindle | SRAM GX Eagle Transmission, DUB Wide | Shimano XT, 24mm Spindle | |
| Bottom Bracket | Shimano MT501 | SRAM DUB BSA | Shimano XT | SRAM DUB BSA | XTR | |
| Rear Derailleur | Shimano Deore M6100 SGS | SRAM Eagle 90 Transmission | Shimano XT Di2 SGS | SRAM GX Eagle Transmission | XTR Di2 SGS | |
| Shifter | Shimano Deore, M6100 | SRAM Eagle 90 Transmission Shifter | Shimano XT Di2 Shift Switch | SRAM GX Eagle Transmission | XTR Di2 Shift Switch | |
| Cassette | Shimano Deore, M6100, 10-51T | SRAM XS 1275 Eagle Transmission 10-52 | Shimano XT, 10-51T | SRAM XS 1275 Eagle Transmission 10-52 | XTR 10-51 | |
| Chain | KMC X12 | SRAM GX Eagle Transmission | Shimano XT | SRAM GX Eagle Transmission | XTR | |
| Chain Guide | MRP AMg SE | MRP AMg SE | MRP AMg SE | MRP AMg SE | MRP AMg SE | |
| Headset | Cane Creek 50: ZS44/ZS56 | Cane Creek 40 ZS44/ZS56 | Cane Creek 50: ZS44/ZS56 | Cane Creek 40 ZS44/ZS56 | Cane Creek 40 ZS44/ZS56 | |
| Grips | Lizard Skins Single Clamp | Lizard Skins Single Clamp | Lizard Skins Single Clamp | Lizard Skins Single Clamp | Lizard Skins Single Clamp | |
| Handlebar | Ibis Aluminum, 780mm | Blackbird 35 Aluminum Riser Bar 800mm | Ibis Hi Fi, 31.8mm, 800mm | Ibis Hi Fi, 31.8mm, 800mm | BLKBRD 35 Carbon Riser Bar 800mm | |
| Stem | Ibis 31.8mmS–M: 40mm, L–XL: 50mm | BLKBRD 35 StemS–M: 35mm, XM–XL: 50mm | Ibis 31.8mmS–M: 40mm, XM–XL: 50mm | Ibis 31.8mmS–M: 40mm, XM–XL: 50mm | Ibis 31.8mmS–M: 40mm, XM–XL: 50mm | |
| Seatpost | KS Vantage DropperS: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm | KS Vantage DropperS: 110-140mm, M-XM:140-170mm, L-XL: 180-210mm | BikeYoke Revive MaxS: 125mm, M: 160mm, XM: 185mm, L–XL: 213mm | Bike Yoke Revive Dropper 34.9mmS: 125mm, M: 160mm, XM: 185mm, L–XL: 213mm | BikeYoke Revive MaxS: 125mm, M: 160mm, XM: 185mm, L–XL: 213mm | |
| Saddle | WTB Silverado Fusion CrMo 142 | WTB Silverado Fusion CrMo 142 | WTB Silverado Fusion CrMo 142 | WTB Silverado Fusion CrMo 142 | WTB Silverado Fusion CrMo 142 |
